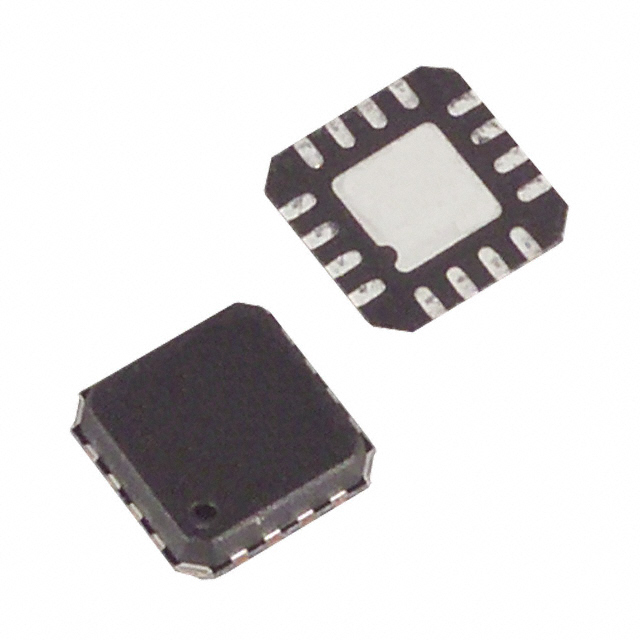

MAX4692EGE-T

IC SWITCH SP4T X 2 70OHM 16QFN

Manufacturer: Analog Devices Inc./Maxim Integrated

Categories: Analog Switches, Multiplexers, Demultiplexers

Quality Control: Learn More

Analog Devices Inc./Maxim Integrated MAX4692EGE-T is a dual 4:1 analog multiplexer/demultiplexer featuring SP4T switch configurations. Each of the two circuits offers a low on-state resistance of 70 Ohms maximum, with channel-to-channel matching (?Ron) of 2 Ohms. This device exhibits a charge injection of 0.1 pC and excellent crosstalk rejection of -75dB at 100kHz. The leakage current (IS(off)) is a maximum of 1nA. Operating over a temperature range of -40°C to 85°C, it supports single supply voltages from 2V to 11V and dual supply voltages from ±2V to ±5.5V. The component is supplied in a 16-QFN (4x4) package, suitable for surface mounting. This component finds application in various electronic systems, including audio and video signal routing and general-purpose analog signal switching.

Additional Information

Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / Case16-VQFN Exposed Pad
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 85°C (TA)
On-State Resistance (Max)70Ohm
-3db Bandwidth-
Supplier Device Package16-QFN (4x4)
Voltage - Supply, Single (V+)2V ~ 11V
Voltage - Supply, Dual (V±)±2V ~ 5.5V
Charge Injection0.1pC
Crosstalk-75dB @ 100kHz
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Channel-to-Channel Matching (ÃŽ”Ron)2Ohm
Switch Time (Ton, Toff) (Max)300ns, 100ns
Channel Capacitance (CS(off), CD(off))9pF, 68pF
Current - Leakage (IS(off)) (Max)1nA
Number of Circuits2
