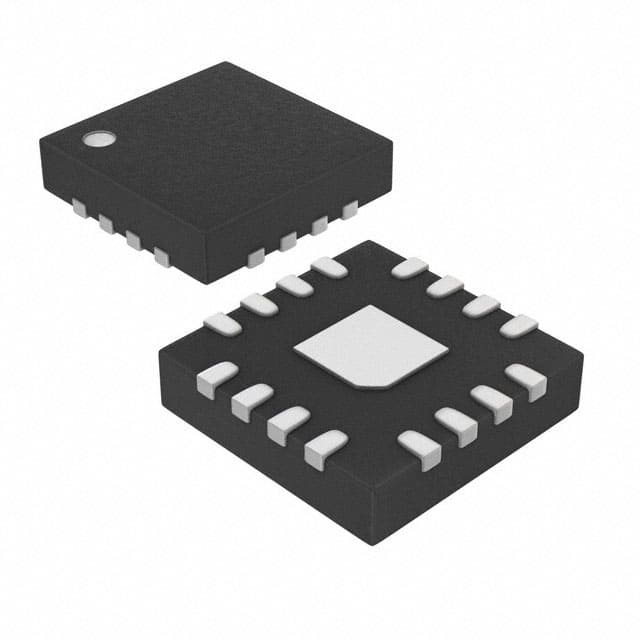

MAX4674ETE+
IC SWITCH SPDT X 4 4OHM 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
4 Circuit IC Switch 2:1 4Ohm 16-TQFN (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 4Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-TQFN (4x4) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 10pC |
| Crosstalk | -114dB @ 1MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 150mOhm |
| Switch Time (Ton, Toff) (Max) | 18ns, 6ns |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Number of Circuits | 4 |
Request a Quote
