MAX4653ESE+

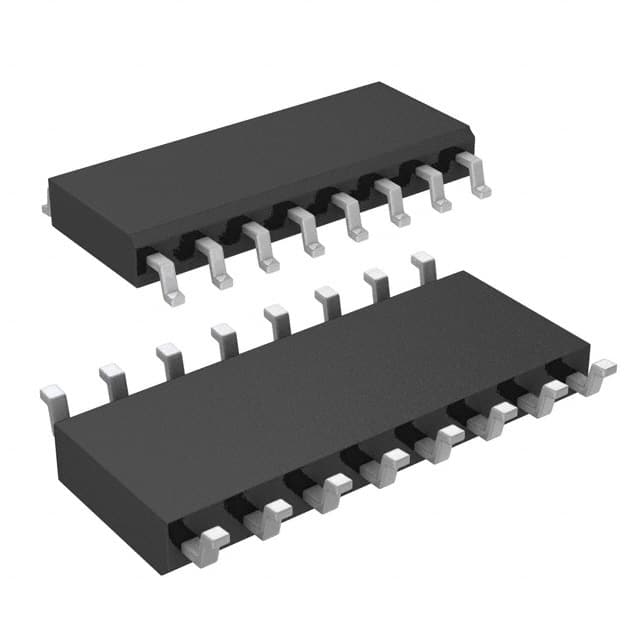

IC SW SPST-NO/NCX4 4OHM 16SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4653ESE- is a quad, SPST analog switch featuring 4 Ohm on-resistance and 14ns/8ns switch times. This 1:1 multiplexer/demultiplexer circuit offers 100pA maximum leakage current and 2pC charge injection. It operates from a single 1.8V to 5.5V supply and is packaged in a 16-SOIC surface mount configuration. The device exhibits 50mOhm channel-to-channel resistance matching and -100dB crosstalk at 1MHz. This component is suitable for applications in industrial, medical, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 4Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 2pC |
| Crosstalk | -100dB @ 1MHz |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 50mOhm |
| Switch Time (Ton, Toff) (Max) | 14ns, 8ns |
| Channel Capacitance (CS(off), CD(off)) | 16pF, 16pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 4 |
