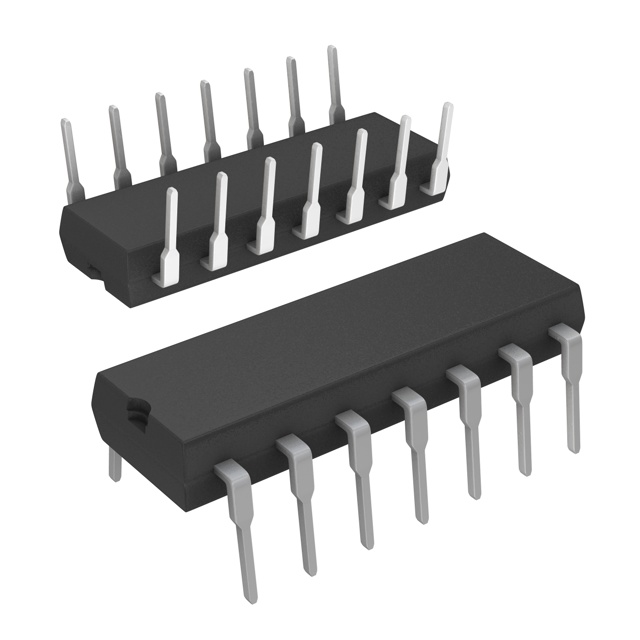

MAX4610CPD
IC SWITCH SPST-NOX4 100OHM 14DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4610CPD is a quad, single-pole, single-throw (SPST) analog switch. This device features four independent switches, each with a 1:1 multiplexer/demultiplexer circuit configuration. The MAX4610CPD offers a maximum on-state resistance of 100 Ohms and exhibits excellent channel-to-channel matching with a delta Ron of only 1 Ohm. With a -3dB bandwidth of 300MHz, it is suitable for applications requiring high-speed signal routing. Leakage current is minimized at 100pA (IS(off)), and crosstalk is specified at -80dB at 1MHz. The device operates with a single supply voltage ranging from 2V to 12V and is housed in a 14-pin DIP package for through-hole mounting. Key specifications include charge injection of 1pC and channel capacitance (CS(off), CD(off)) of 16pF. Switching times are 65ns for turn-on and 28ns for turn-off. This component finds application in various electronics systems, including audio and video signal switching, battery-powered equipment, and data acquisition systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 100Ohm |
| -3db Bandwidth | 300MHz |
| Supplier Device Package | 14-PDIP |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 1pC |
| Crosstalk | -80dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 1Ohm |
| Switch Time (Ton, Toff) (Max) | 65ns, 28ns |
| Channel Capacitance (CS(off), CD(off)) | 16pF, 16pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 4 |
