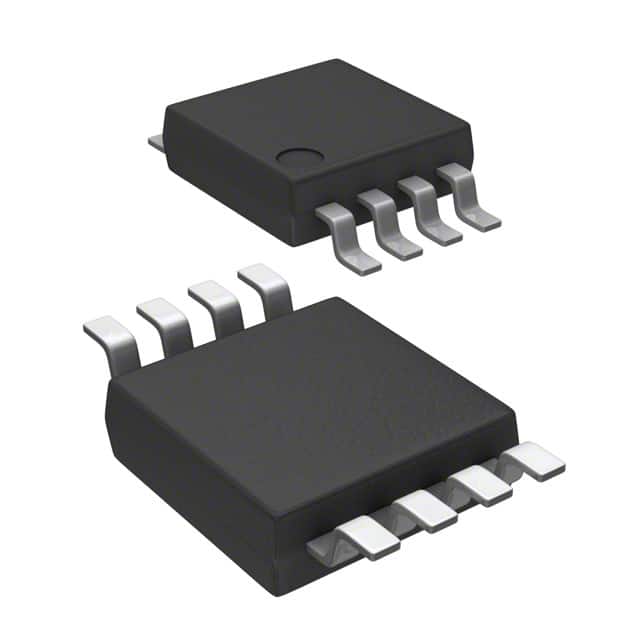

MAX4526EUA
IC SWITCH SPDT X 2 175OHM 8UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX4526EUA is a dual, 2:1 analog multiplexer/demultiplexer designed for high-performance applications. This SPDT switch features a low on-resistance of 175 Ohms maximum, with channel-to-channel matching (?Ron) of 500 mOhms, ensuring signal integrity. With a charge injection of 1 pC and leakage current (IS(off)) of 500 pA maximum, it is suitable for sensitive signal paths. The device operates over a wide temperature range of -40°C to 85°C and supports single supply voltages from 4.5V to 36V, or dual supplies from ±4.5V to ±18V. Packaged in an 8-uMAX/uSOP (8-TSSOP, 8-MSOP), the MAX4526EUA is commonly utilized in telecommunications, industrial control systems, and audio/video routing. Its 2:1 multiplexer circuitry and SPDT configuration make it a versatile component for signal selection and switching.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 175Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 8-uMAX/uSOP |
| Voltage - Supply, Single (V+) | 4.5V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Charge Injection | 1pC |
| Crosstalk | - |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 500mOhm |
| Switch Time (Ton, Toff) (Max) | - |
| Channel Capacitance (CS(off), CD(off)) | 13pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Number of Circuits | 2 |
