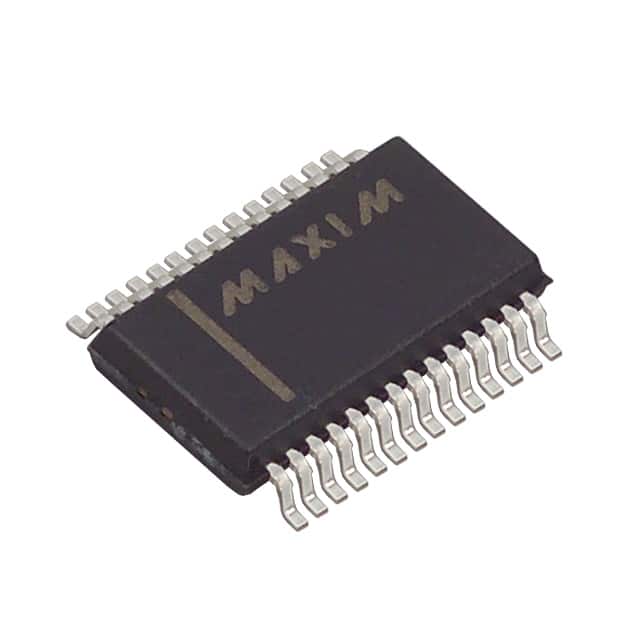

MAX396CAI+T
IC MUX 16:1 100OHM 28SSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX396CAI-T is a single-circuit 16:1 analog multiplexer. This device features a low on-resistance of 100 Ohms maximum, with channel-to-channel matching (?Ron) of 1.8 Ohms. It operates over a temperature range of 0°C to 70°C and supports single supply voltages from 2.7V to 16V, or dual supplies from ±2.7V to ±8V. Switching times are 150ns for both turn-on and turn-off. The component is supplied in a 28-SSOP package and is suitable for applications in industrial and consumer electronics requiring signal routing and selection. Key parameters include leakage current of 100pA maximum and crosstalk of -92dB at 100kHz.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 100Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 28-SSOP |
| Voltage - Supply, Single (V+) | 2.7V ~ 16V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 8V |
| Charge Injection | 2pC |
| Crosstalk | -92dB @ 100kHz |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 1.8Ohm |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 80pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 1 |
