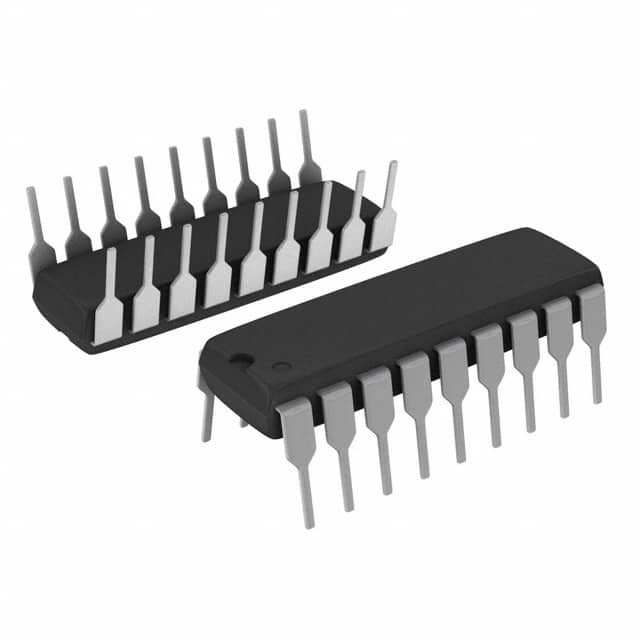

MAX369CPN+
IC SWITCH SP4T X 2 1.8KOHM 18DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX369CPN- is a dual 4:1 analog multiplexer/demultiplexer featuring SP4T switch configurations with a maximum on-state resistance of 1.8 kOhm. This component operates with dual supply voltages ranging from ±4.5V to ±18V and a single supply option. The device exhibits a channel capacitance of 5pF (off) and 12pF (off), with channel-to-channel matching (?Ron) of 180 Ohm. Charge injection is specified at 55pC, and leakage current (IS(off)) is a maximum of 5nA. Switching times are 1.5µs (on) and 1µs (off). The MAX369CPN- is housed in an 18-PDIP package and is suitable for through-hole mounting. This component finds application in test and measurement equipment, medical instrumentation, and telecommunications systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 1.8kOhm |
| -3db Bandwidth | - |
| Supplier Device Package | 18-PDIP |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Charge Injection | 55pC |
| Crosstalk | - |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 180Ohm |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Number of Circuits | 2 |
