MAX350CPN

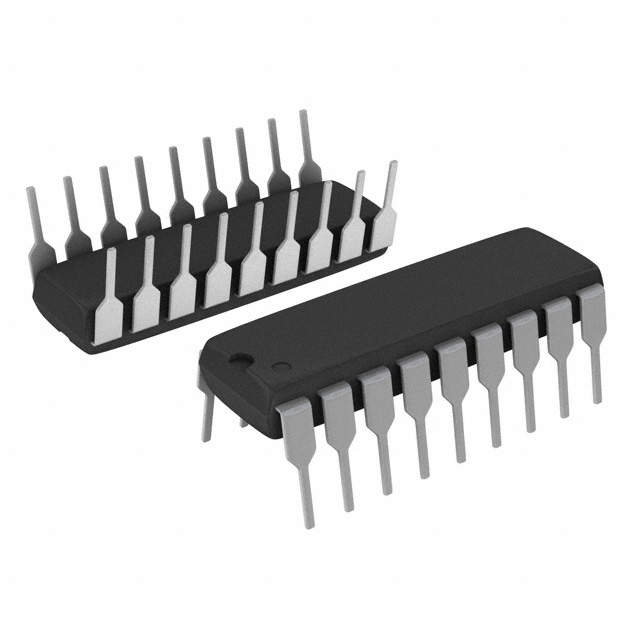

IC SWITCH SP4T X 2 100OHM 18DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX350CPN is a dual 4:1 analog multiplexer/demultiplexer designed for precision signal routing. This device features two independent SP4T switches, each offering a maximum on-state resistance of 100 Ohms. With a channel capacitance of 2pF (CS(off), CD(off)) and a low charge injection of 1pC, it minimizes signal degradation and distortion. The MAX350CPN operates from single supply voltages of 2.7V to 16V or dual supplies from ±2.7V to ±8V. Its through-hole mounting and 18-PDIP package are suitable for applications in test and measurement equipment, audio signal switching, and data acquisition systems. Crosstalk is specified at -90dB at 100kHz, and leakage current is a maximum of 100pA.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 100Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 18-PDIP |
| Voltage - Supply, Single (V+) | 2.7V ~ 16V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 8V |
| Charge Injection | 1pC |
| Crosstalk | -90dB @ 100kHz |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 16Ohm (Max) |
| Switch Time (Ton, Toff) (Max) | 275ns, 150ns |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 2pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 2 |
