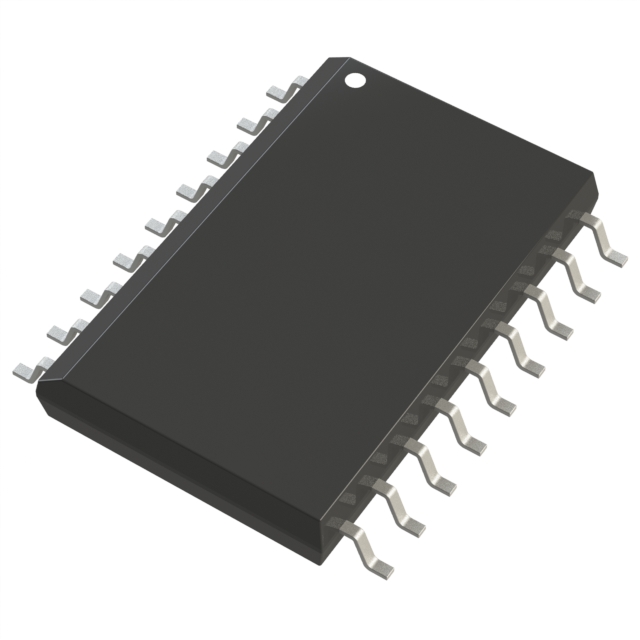

MAX349CWN
IC MUX 8:1 100OHM 18SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX349CWN is an 8:1 analog multiplexer/demultiplexer featuring a single circuit. This component offers a maximum on-state resistance of 100 Ohms and a channel-to-channel matching (?Ron) of 16 Ohms. It operates within a voltage range of 2.7V to 16V for single supply and ±2.7V to ±8V for dual supply. The device exhibits low leakage current of 100pA (max) and a charge injection of 1pC. Switching times are specified at 275ns for turn-on and 150ns for turn-off. The MAX349CWN is housed in an 18-SOIC package and is suitable for applications in industrial and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 100Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 18-SOIC |
| Voltage - Supply, Single (V+) | 2.7V ~ 16V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 8V |
| Charge Injection | 1pC |
| Crosstalk | -90dB @ 100kHz |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 16Ohm (Max) |
| Switch Time (Ton, Toff) (Max) | 275ns, 150ns |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 2pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 1 |
