MAX337EAI+T

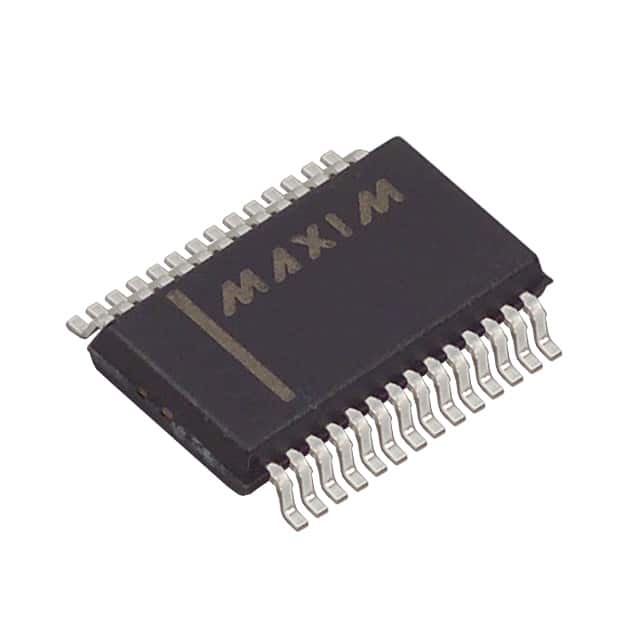

IC MUX DUAL 8:1 400OHM 28SSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX337EAI-T is an 8:1 multiplexer/demultiplexer IC featuring two independent 8:1 switch circuits. This component offers a maximum on-state resistance of 400 Ohms with a channel-to-channel matching (?Ron) of 5 Ohms. It operates over a temperature range of -40°C to 85°C and supports single supply voltages from 4.5V to 20V or dual supply configurations from ±4.5V to ±20V. The device is housed in a 28-SSOP package, suitable for surface mount applications. Key specifications include a charge injection of 3.5pC, crosstalk of -86dB at 100kHz, and minimal leakage current of 20pA. Typical applications include test and measurement equipment, industrial control systems, and communication infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 400Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 28-SSOP |
| Voltage - Supply, Single (V+) | 4.5V ~ 20V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Charge Injection | 3.5pC |
| Crosstalk | -86dB @ 100kHz |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 5Ohm |
| Switch Time (Ton, Toff) (Max) | 500ns, 500ns |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 20pA |
| Number of Circuits | 2 |
