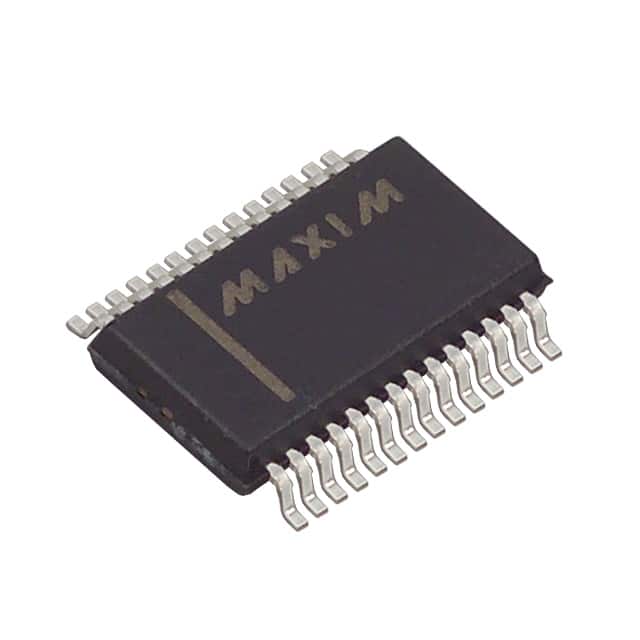

MAX337CAI+T
IC MUX DUAL 8:1 400OHM 28SSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX337CAI-T is a dual 8:1 analog multiplexer/demultiplexer designed for efficient signal routing. This 28-SSOP surface-mount component features a maximum on-state resistance of 400 Ohms and excellent channel-to-channel matching with a ?Ron of 5 Ohms. It offers low leakage current of 20pA (IS(off)) and low charge injection of 3.5pC. The device operates with single supply voltages from 4.5V to 20V or dual supplies from ±4.5V to ±20V, with an operating temperature range of 0°C to 70°C. Typical applications include data acquisition systems and signal switching in industrial automation and consumer electronics. Switching times are rated at 500ns for both turn-on and turn-off.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 400Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 28-SSOP |
| Voltage - Supply, Single (V+) | 4.5V ~ 20V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Charge Injection | 3.5pC |
| Crosstalk | -86dB @ 100kHz |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 5Ohm |
| Switch Time (Ton, Toff) (Max) | 500ns, 500ns |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 20pA |
| Number of Circuits | 2 |
