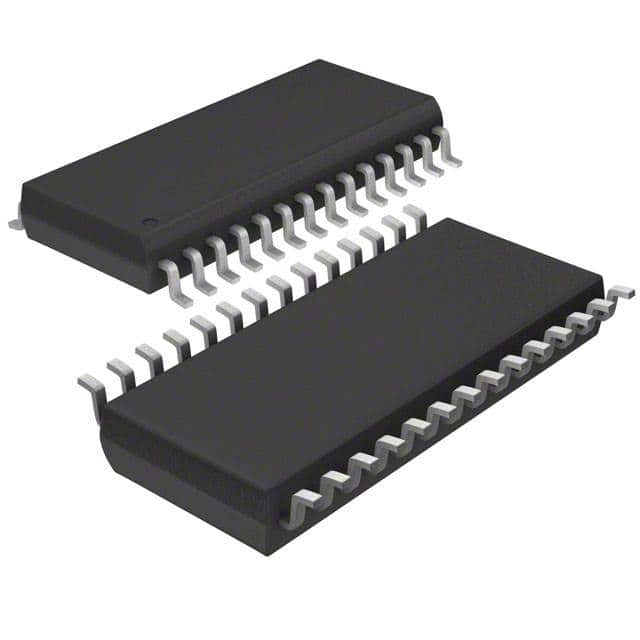

MAX336EUI+T
IC MUX 16:1 400OHM 28TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX336EUI-T is a single-circuit 16:1 multiplexer featuring a maximum on-state resistance of 400 Ohms. This device operates with single supply voltages ranging from 4.5V to 30V or dual supplies from ±4.5V to ±20V. Key performance characteristics include low channel capacitance of 2pF (off-state) and 20pF (off-state), with channel-to-channel matching (?Ron) of 5 Ohms. Charge injection is specified at 3.5 pC, and crosstalk is -86dB at 100kHz. Leakage current (IS(off)) is a maximum of 20pA. The switch time (Ton, Toff) is 500ns. This component is housed in a 28-TSSOP package, suitable for surface mounting. The MAX336EUI-T is often utilized in applications within the industrial and test & measurement sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 400Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 28-TSSOP |
| Voltage - Supply, Single (V+) | 4.5V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Charge Injection | 3.5pC |
| Crosstalk | -86dB @ 100kHz |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 5Ohm |
| Switch Time (Ton, Toff) (Max) | 500ns, 500ns |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 20pA |
| Number of Circuits | 1 |
