MAX324CUA+

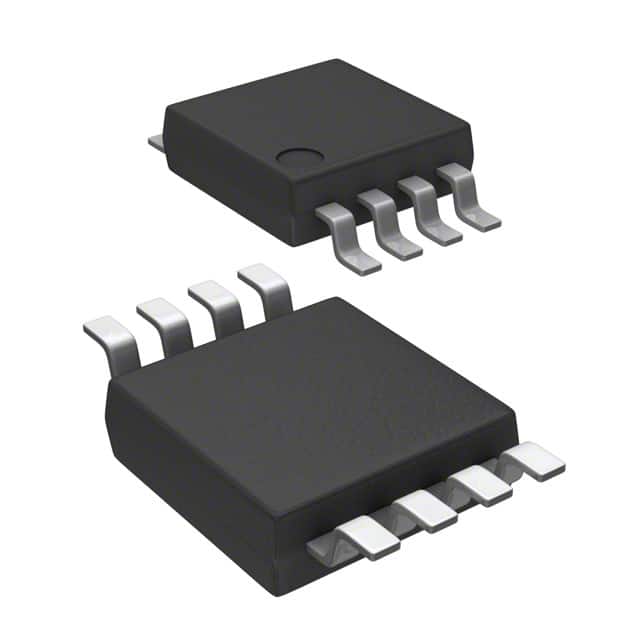

IC SWITCH SPST-NCX2 60OHM 8UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX324CUA- is a dual SPST-NC analog switch. This component offers a 1:1 multiplexer/demultiplexer circuit with a maximum on-state resistance of 60 Ohms. Key specifications include a channel capacitance of 9pF, channel-to-channel matching (?Ron) of 800 mOhms, and charge injection of 1pC. It operates with a single supply voltage from 2.7V to 16V and features a maximum switch time of 150ns (turn-on) and 100ns (turn-off). The leakage current (IS(off)) is a maximum of 100pA. This device is supplied in an 8-uMAX/uSOP package for surface mounting. Applications include test and measurement equipment, audio signal routing, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 60Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 8-uMAX/uSOP |
| Voltage - Supply, Single (V+) | 2.7V ~ 16V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 1pC |
| Crosstalk | -85dB @ 1MHz |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 800mOhm |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 2 |
