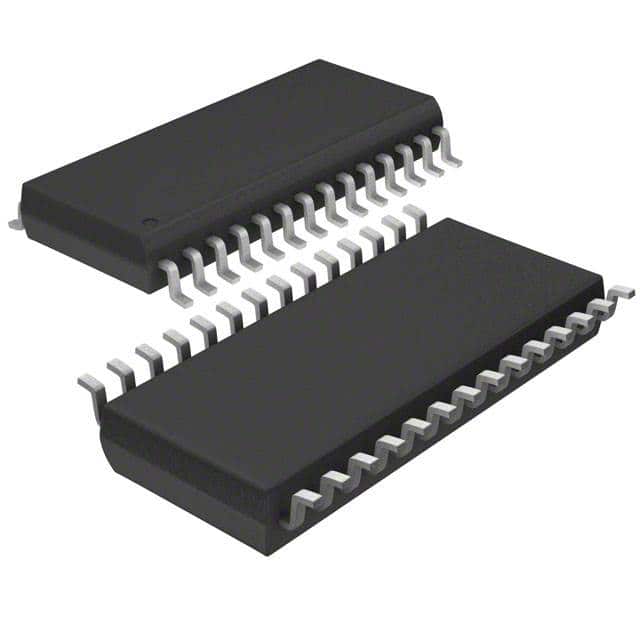

MAX306EUI+T
IC MUX 16:1 100OHM 28TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX306EUI-T is a single 16:1 multiplexer/demultiplexer circuit designed for high-performance analog signal routing. This device features a low on-resistance of 100 Ohms maximum, with channel-to-channel matching of only 1.5 Ohms. It operates over a wide temperature range of -40°C to 85°C and supports dual supply voltages from ±4.5V to ±20V, or single supply from 5V to 30V. Key specifications include 8pF and 130pF channel capacitance (CS(off), CD(off)), 2pC charge injection, and -92dB crosstalk at 100kHz. Leakage current is minimized to 500pA (IS(off)). The device is housed in a 28-TSSOP package and is supplied on tape and reel. Applications include test and measurement equipment, communication systems, and industrial control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 100Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 28-TSSOP |
| Voltage - Supply, Single (V+) | 5V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Charge Injection | 2pC |
| Crosstalk | -92dB @ 100kHz |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 1.5Ohm |
| Switch Time (Ton, Toff) (Max) | 200ns, 150ns |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 130pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Number of Circuits | 1 |
