MAX303ESE+T

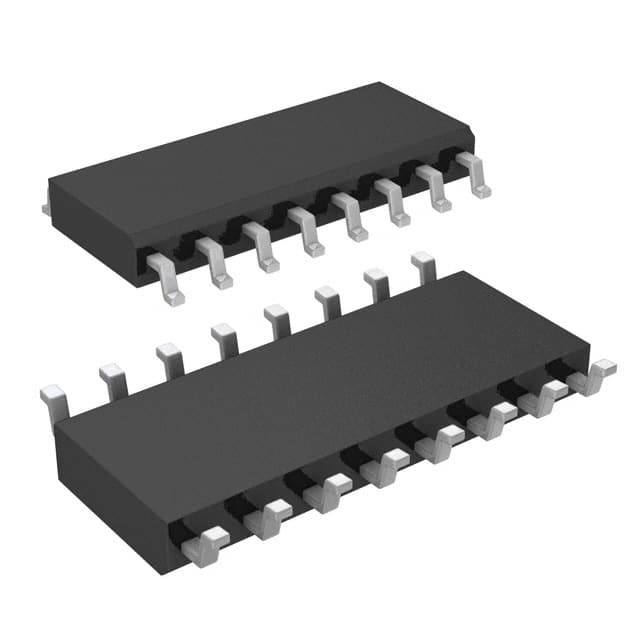

IC SWITCH SPDT X 2 35OHM 16SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX303ESE-T is a dual, 2:1 analog switch IC featuring SPDT (Single Pole Double Throw) functionality. This component is designed for applications requiring efficient signal routing with an on-state resistance of 35 Ohms maximum. It operates with single supply voltages ranging from 10V to 30V or dual supplies from ±4.5V to ±20V. The MAX303ESE-T offers a robust switching performance with a charge injection of 10pC and channel capacitance of 12pF. Crosstalk is specified at -90dB at 1MHz, and leakage current is a maximum of 500pA. Switch times are 150ns (turn-on) and 100ns (turn-off). Packaged in a 16-SOIC format for surface mounting, this device is suitable for use in industrial and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 35Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 10V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Charge Injection | 10pC |
| Crosstalk | -90dB @ 1MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 500mOhm |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Number of Circuits | 2 |
