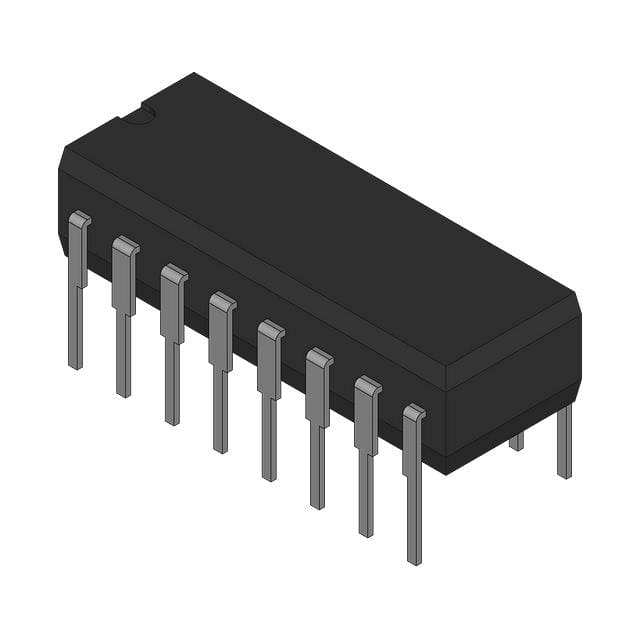

HI3-0201HS-9
IC SW SPSTX4 50OHM 16DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
4 Circuit IC Switch 1:1 50Ohm 16-PDIP
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 50Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-PDIP |
| Voltage - Supply, Single (V+) | 12V ~ 20V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Charge Injection | 10pC |
| Crosstalk | -90dB @ 100kHz |
| Switch Circuit | SPST - Closed |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 50ns |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 4 |
