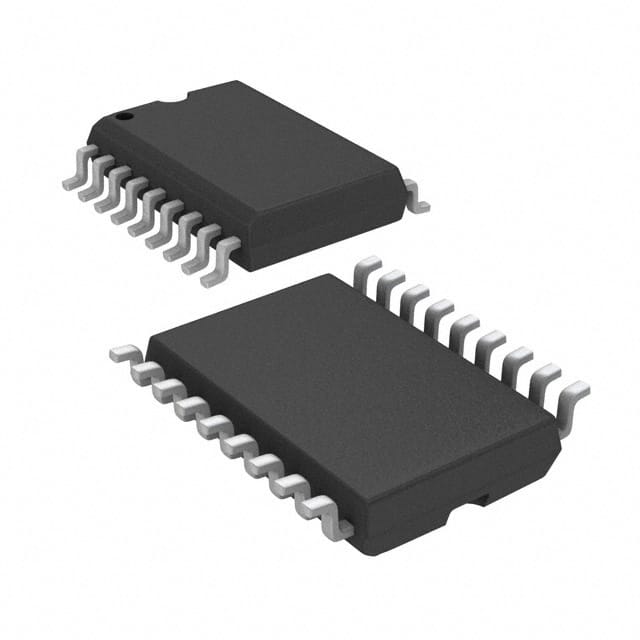

DG528EWN+T
IC MUX 8:1 450OHM 18SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DG528EWN-T is a single-circuit 8:1 multiplexer featuring a maximum on-state resistance of 450 Ohms. This device operates with dual supply voltages ranging from ±4.5V to ±20V or a single supply from 5V to 30V. It offers a switch time of 1.5µs for both turn-on and turn-off. Key specifications include a channel capacitance (CS(off), CD(off)) of 5pF and 25pF respectively, a channel-to-channel matching (?Ron) of 27 Ohms, and a charge injection of 4pC. The component exhibits a low leakage current (IS(off)) of 5nA maximum. Packaged in an 18-SOIC (0.295", 7.50mm Width) surface mount configuration, it is supplied on tape and reel. The DG528EWN-T is suitable for applications in test and measurement, industrial automation, and telecommunications. Operating temperature is specified from -40°C to 85°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 18-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 450Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 18-SOIC |
| Voltage - Supply, Single (V+) | 5V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Charge Injection | 4pC |
| Crosstalk | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 27Ohm |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1.5µs |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Number of Circuits | 1 |
