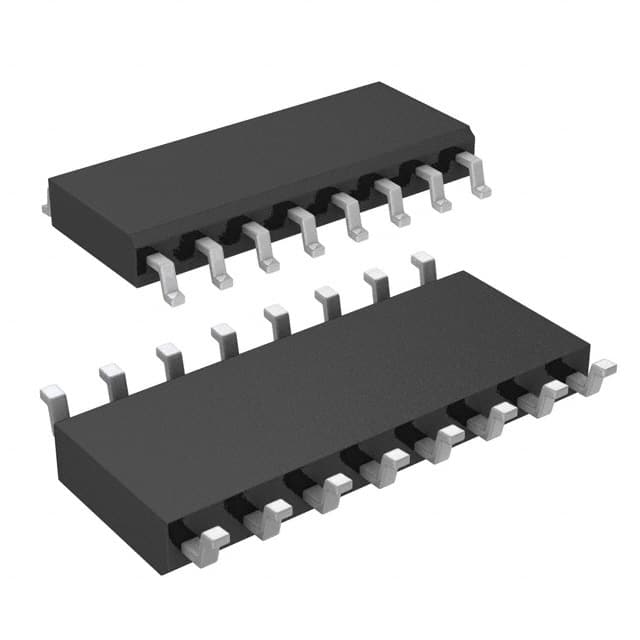

DG442DY+T
IC SWITCH SPST-NOX4 85OHM 16SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DG442DY-T is a 4-circuit, single-pole, single-throw, normally open (SPST-NO) analog switch. This component features a low on-state resistance of 85 Ohms (max) and channel-to-channel matching of 4 Ohms (max). The device supports dual power supply voltages from ±4.5V to 20V or single supply from 10V to 30V. With a charge injection of 5pC and crosstalk of -100dB @ 1MHz, it is suitable for applications requiring precise signal routing. The DG442DY-T offers fast switching times with a maximum of 250ns for turn-on and 170ns for turn-off. It is supplied in a 16-SOIC (0.154"", 3.90mm Width) surface mount package and is delivered on tape and reel. This device finds application in various industries including industrial, medical, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 85Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 10V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Charge Injection | 5pC |
| Crosstalk | -100dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 4Ohm (Max) |
| Switch Time (Ton, Toff) (Max) | 250ns, 170ns |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 4pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Number of Circuits | 4 |
