DG413DY+T

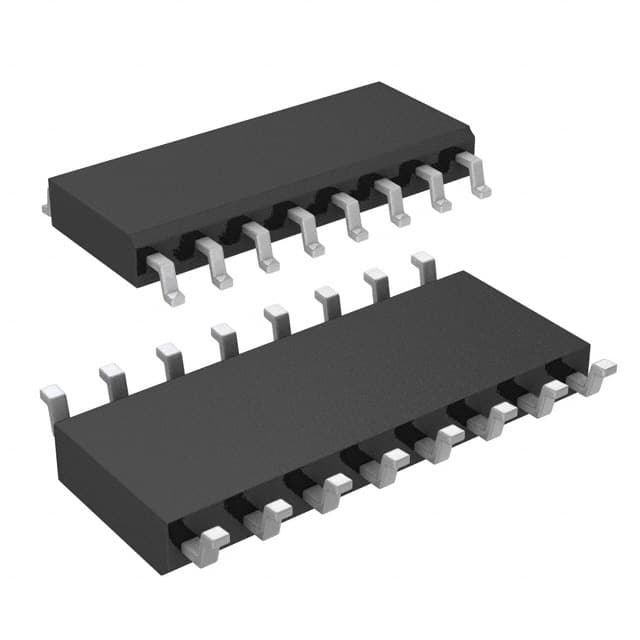

IC SW SPST-NO/NCX4 45OHM 16SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DG413DY-T is a quad, SPST (single-pole, single-throw) analog switch featuring both normally open (NO) and normally closed (NC) configurations. Each of the four circuits offers a maximum on-state resistance of 45 Ohms, with channel-to-channel matching of 3 Ohms. This device operates from single supply voltages ranging from 10V to 30V, or dual supplies from ±4.5V to ±20V. With a charge injection of 5pC and a channel capacitance of 9pF, it is suitable for various signal routing applications. The DG413DY-T is packaged in a 16-SOIC surface-mount configuration, supplied on tape and reel. Typical applications include test and measurement equipment, audio signal routing, and general-purpose analog switching.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 45Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 10V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Charge Injection | 5pC |
| Crosstalk | -85dB @ 1MHz |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 3Ohm (Max) |
| Switch Time (Ton, Toff) (Max) | 175ns, 145ns |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Number of Circuits | 4 |
