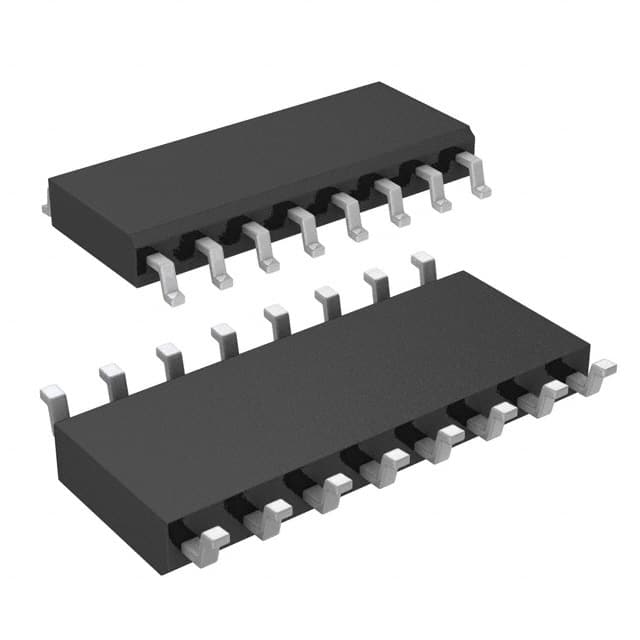

DG409DY+T
IC SWITCH SP4T X 2 100OHM 16SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated DG409DY-T is a dual 4:1 analog multiplexer/demultiplexer featuring SP4T switch configurations. This component is designed for applications requiring precise signal routing and offers low on-state resistance of 100 Ohms maximum. With a channel-to-channel matching (?Ron) of 1.5 Ohms, it ensures consistent performance across all switched paths. The DG409DY-T supports a wide operating voltage range, from 5V to 30V for single supply and ±5V to ±20V for dual supply. Its surface mount 16-SOIC package, supplied on tape and reel, is suitable for automated assembly. Typical applications include data acquisition systems, test and measurement equipment, and industrial control systems. The device exhibits minimal charge injection of 2pC and a leakage current of 500pA maximum.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 100Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 5V ~ 30V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Charge Injection | 2pC |
| Crosstalk | -92dB @ 100kHz |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 1.5Ohm |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Number of Circuits | 2 |
