DG403DY+T

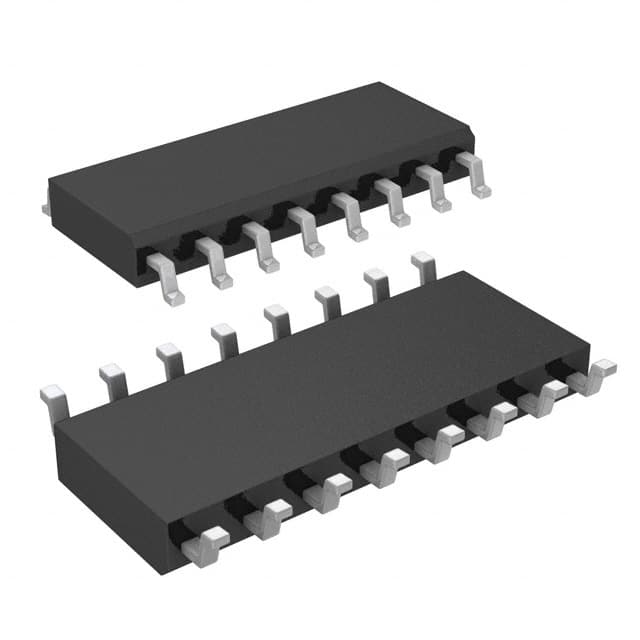

IC SWITCH SPDT X 2 45OHM 16SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DG403DY-T is a dual SPDT analog switch. This device features two independent 2:1 multiplexer/demultiplexer circuits. Each switch offers a maximum on-state resistance of 45 Ohms and a channel-to-channel matching (?Ron) of 500 mOhms. The DG403DY-T operates with single supply voltages from 10V to 30V or dual supplies from ±4.5V to ±20V. Key specifications include a charge injection of 10 pC and leakage current (IS(off)) of 500 pA. Channel capacitance (CS(off), CD(off)) is listed at 12 pF. Switch times are a maximum of 150 ns for turn-on and 100 ns for turn-off. This component is housed in a 16-SOIC package and is supplied on tape and reel. It is suitable for applications in industrial and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 45Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 10V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Charge Injection | 10pC |
| Crosstalk | -90dB @ 1MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 500mOhm |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Number of Circuits | 2 |
