DG390ACJ

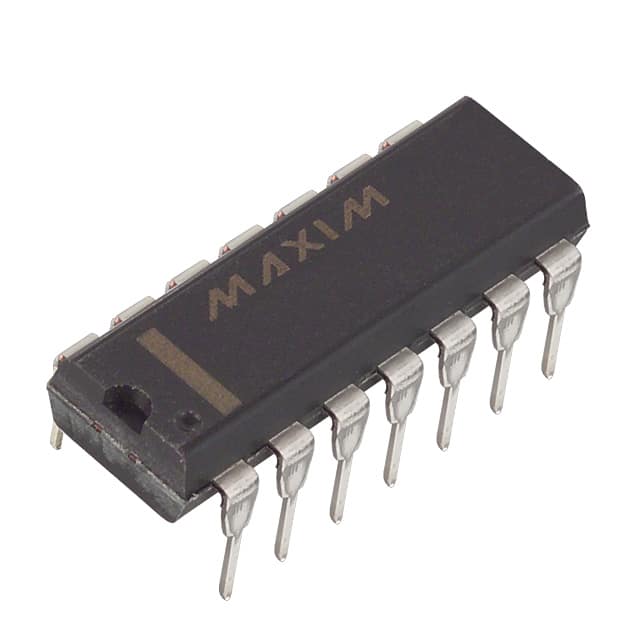

IC SWITCH SPDT X 2 50OHM 14DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DG390ACJ is a dual 2:1 SPDT analog switch. This component features 50-ohm on-state resistance and a guaranteed 300ns switch time. Channel capacitance is specified at 14pF, with a maximum leakage current of 5nA. The device operates with dual supply voltages from ±5V to ±18V and is packaged in a 14-pin DIP (0.300" width). The DG390ACJ is suitable for applications in test and measurement instrumentation and industrial control systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 50Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 14-PDIP |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±5V ~ 18V |
| Charge Injection | 12pC |
| Crosstalk | -74dB @ 500kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Number of Circuits | 2 |
