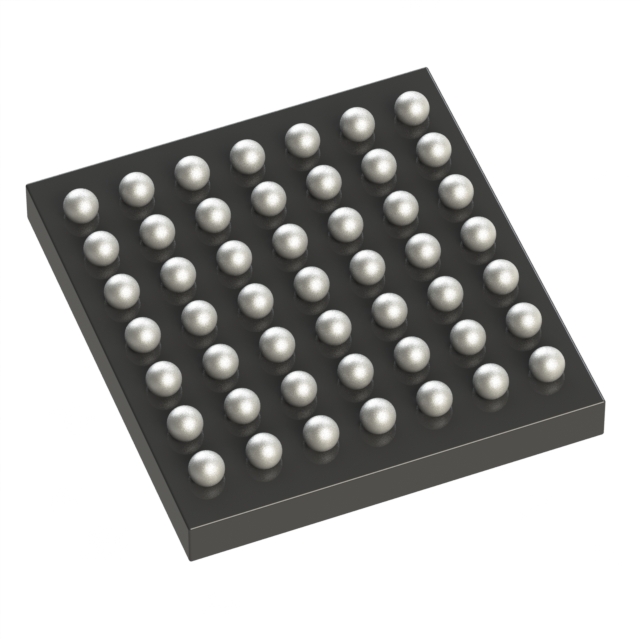

MAX86178ENJ+T
ECG+PPG+BIOZ AFEManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Front End (AFE)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX86178ENJ-T is a single-channel Analog Front End (AFE) designed for advanced biometric sensing applications. This component features a 20-bit resolution, enabling precise signal acquisition for Electrocardiogram (ECG), Photoplethysmogram (PPG), and Bioimpedance (BIOZ) measurements. Packaged in a compact 49-WLP (2.57x2.77) format, it is suitable for surface-mount integration. The MAX86178ENJ-T is supplied on a tape and reel for efficient high-volume manufacturing. Its capabilities are well-suited for integration into wearable health monitoring devices, medical diagnostic equipment, and fitness trackers.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 49-XFBGA, WLBGA |
| Mounting Type | Surface Mount |
| Number of Bits | 20 |
| Voltage - Supply, Analog | - |
| Voltage - Supply, Digital | - |
| Supplier Device Package | 49-WLP (2.57x2.77) |
| Number of Channels | 1 |
Request a Quote
