MAX30009ENA+T
2 CHANNEL BIO ZManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog Front End (AFE)
Quality Control: Learn More

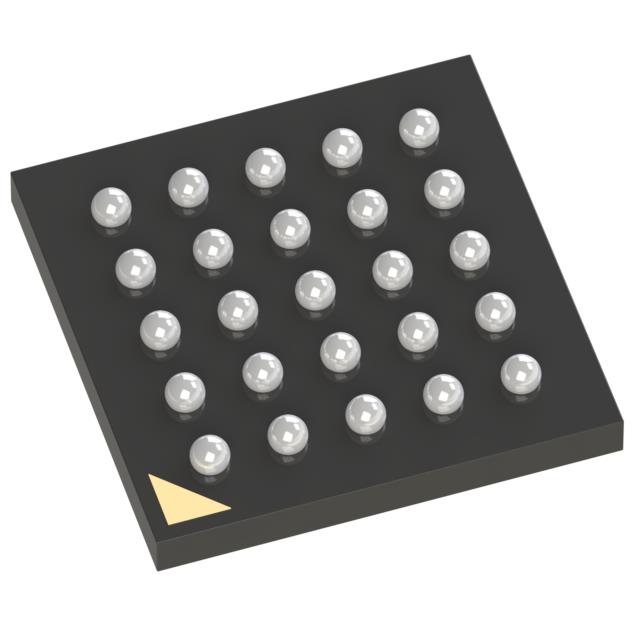

Analog Devices Inc./Maxim Integrated MAX30009ENA-T is a 2-channel Analog Front End (AFE) designed for high-performance bio-sensing applications. This device features a 20-bit resolution, enabling precise measurement of physiological signals. The MAX30009ENA-T operates with analog and digital supply voltages ranging from 1.7V to 2V. Packaged in a compact 25-WLP (2.03x2.03) format, it is supplied on tape and reel for efficient surface mount assembly. Its architecture is well-suited for use in wearable health monitors, portable diagnostic equipment, and other medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 25-XFBGA, WLBGA |
| Mounting Type | Surface Mount |
| Number of Bits | 20 |
| Voltage - Supply, Analog | 1.7V ~ 2V |
| Voltage - Supply, Digital | 1.7V ~ 2V |
| Supplier Device Package | 25-WLP (2.03x2.03) |
| Number of Channels | 2 |
