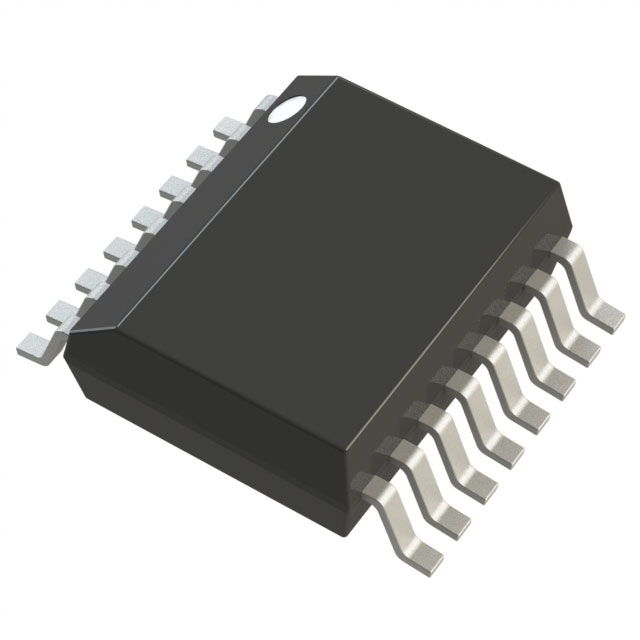

MAX1617MEE
SENSOR DIGITAL -55C-125C 16QSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog and Digital Output
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1617MEE is a digital temperature sensor designed for precise local and remote temperature monitoring across a -55°C to 125°C range. This component features a 7-bit resolution, providing temperature readings with an accuracy of ±2°C at higher temperatures and ±3°C at lower temperatures, as confirmed under test conditions from 60°C to 100°C and -40°C to 125°C respectively. The MAX1617MEE operates from a 3V to 5.5V supply and communicates via the SMBus protocol. Its 16-QSOP package, a 16-SSOP with a 3.90mm width, is suitable for surface mount applications. Additional features include one-shot and standby modes, making it a versatile solution for applications in industrial control, consumer electronics, and network infrastructure where accurate thermal management is critical. It is supplied in tubes.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | One-Shot, Standby Mode |
| Packaging | Tube |
| Package / Case | 16-SSOP (0.154"", 3.90mm Width) |
| Output Type | SMBus |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 3V ~ 5.5V |
| Sensor Type | Digital, Local/Remote |
| Resolution | 7 b |
| Supplier Device Package | 16-QSOP |
| Test Condition | 60°C ~ 100°C (-40°C ~ 125°C) |
| Accuracy - Highest (Lowest) | ±2°C (±3°C) |
| Sensing Temperature - Local | -55°C ~ 125°C |
| Sensing Temperature - Remote | -55°C ~ 125°C |
