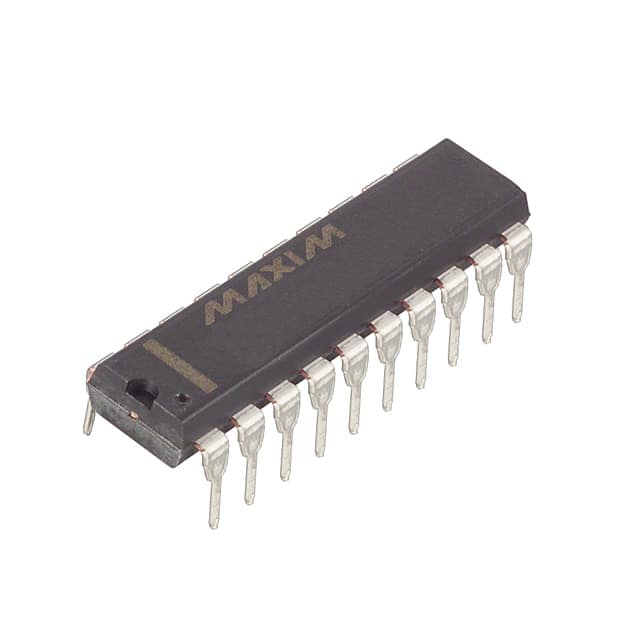

MAX188CCPP+
IC DAS/ADC 12BIT 133K 20DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX188CCPP- is a 12-bit, 133kSPS Analog-to-Digital Converter (ADC) within a Data Acquisition System (DAS) architecture. This component features multiple serial data interfaces, including MICROWIRE™, QSPI™, and SPI™, facilitating flexible system integration. It offers 8 analog input channels, enabling multi-channel data acquisition. The device operates from dual ±5V power supplies and is housed in a standard 20-PDIP (0.300", 7.62mm) through-hole package, suitable for robust board-level assembly. Its operating temperature range is from 0°C to 70°C. This ADC is commonly employed in industrial control, data logging, and instrumentation applications requiring precise analog signal conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Type | Data Acquisition System (DAS), ADC |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | ±5V |
| Sampling Rate (Per Second) | 133k |
| Resolution (Bits) | 12 b |
| Voltage Supply Source | Dual ± |
| Supplier Device Package | 20-PDIP |
| Number of Channels | 8 |
