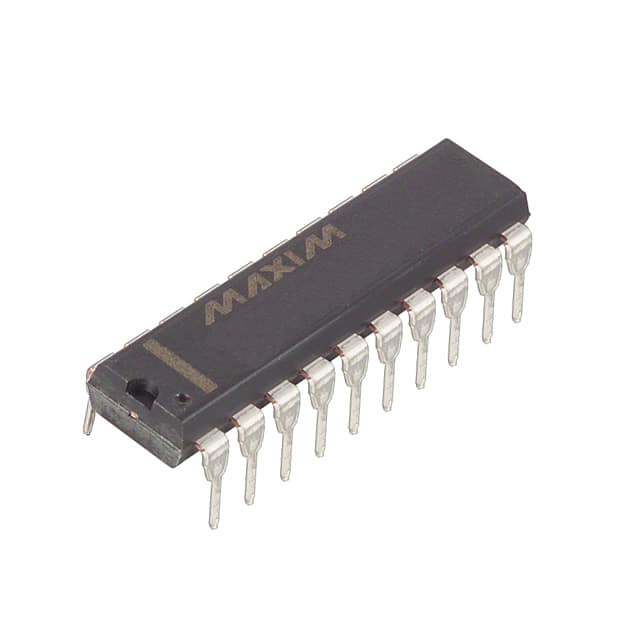

MAX186BEPP+
IC DAS/ADC 12BIT 133K 20DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX186BEPP- is a 12-bit, 133kSPS data acquisition system featuring an Analog-to-Digital Converter (ADC). This component offers an 8-channel input multiplexer and supports multiple serial data interfaces including MICROWIRE™, QSPI™, and SPI™. It operates from a dual ±5V supply and is housed in a 20-PDIP package suitable for through-hole mounting. The device is specified for operation across a temperature range of -40°C to 85°C. Applications for this component can be found in industrial instrumentation and data logging systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Type | Data Acquisition System (DAS), ADC |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±5V |
| Sampling Rate (Per Second) | 133k |
| Resolution (Bits) | 12 b |
| Voltage Supply Source | Dual ± |
| Supplier Device Package | 20-PDIP |
| Number of Channels | 8 |
