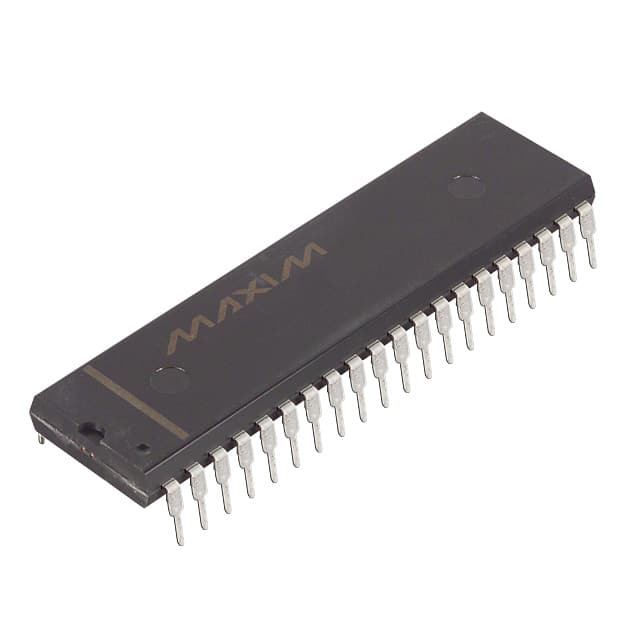

MAX138EPL+
IC ADC 3 1/2DIG W/LCD DVR 40-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX138EPL- is a 3.5-digit analog-to-digital converter (ADC) with an integrated LCD driver. This component features a parallel data interface and a through-hole mounting type, supplied in a 40-PDIP package. Designed for single-supply operation, it accepts input voltages from 2.5V to 7V. The device is suitable for applications requiring direct driving of LCD displays, commonly found in test and measurement equipment, portable instrumentation, and industrial control systems. Its architecture enables precise measurement and display of analog signals with a 3.5-digit resolution.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 40-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Type | Display Driver |
| Data Interface | Parallel |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.5V ~ 7V, 2.5V ~ 7V |
| Sampling Rate (Per Second) | - |
| Resolution (Bits) | 3.5 Digit |
| Voltage Supply Source | Single Supply |
| Supplier Device Package | 40-PDIP |
| Number of Channels | 2 |
