MAX1358BETL+TW
IC DAS 16BIT 21.94K 40TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX1358BETL-TW is a 16-bit Data Acquisition System (DAS) offering a sampling rate of 21.94k samples/second. This component supports multiple serial data interfaces including MICROWIRE™, QSPI™, and SPI™. It features two channels and operates across a temperature range of -40°C to 85°C. The device is supplied in a 40-TQFN (6x6) package with an exposed pad, designed for surface mount applications. Power is supplied via an analog and digital voltage source ranging from 1.8V to 3.6V. This component is utilized in various industries including industrial automation and medical instrumentation. The MAX1358BETL-TW is provided in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Data Acquisition System (DAS) |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.6V |
| Sampling Rate (Per Second) | 21.94k |
| Resolution (Bits) | 16 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 40-TQFN (6x6) |
| Number of Channels | 2 |
Request a Quote
Clients Also Buy

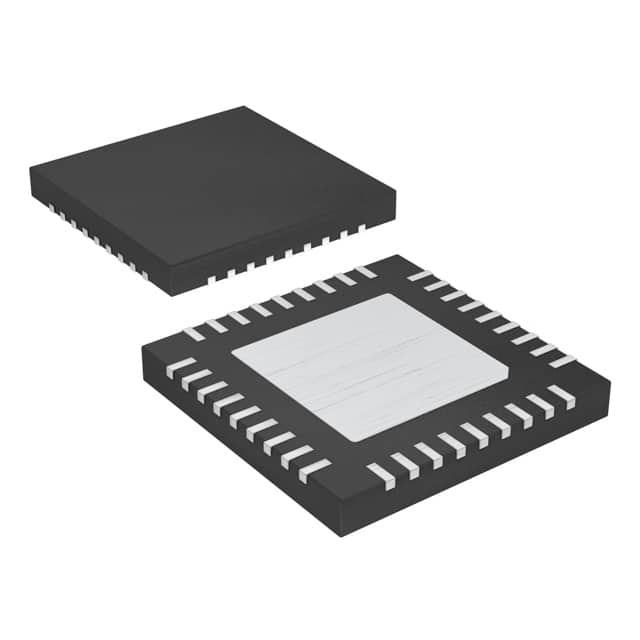

MAX1021BETX+
