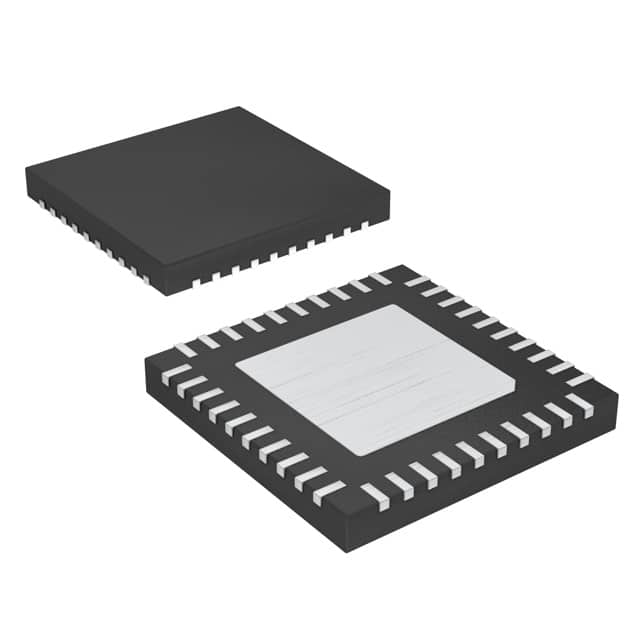

MAX1358BETL+T
IC DAS 16BIT 21.94K 40TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1358BETL-T is a 16-bit Data Acquisition System (DAS) with a sampling rate of 21.94k samples per second. This component features a versatile data interface supporting MICROWIRE™, QSPI™, Serial, and SPI™ protocols, facilitating seamless integration into various system architectures. Designed for surface mount applications, it is housed in a compact 40-TQFN (6x6) package with an exposed pad for enhanced thermal performance. The MAX1358BETL-T operates across a supply voltage range of 1.8V to 3.6V, drawing from both analog and digital supply sources. It includes two channels and is specified for operation within an extended temperature range of -40°C to 85°C. This device finds application in industries such as industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Data Acquisition System (DAS) |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.6V |
| Sampling Rate (Per Second) | 21.94k |
| Resolution (Bits) | 16 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 40-TQFN (6x6) |
| Number of Channels | 2 |
