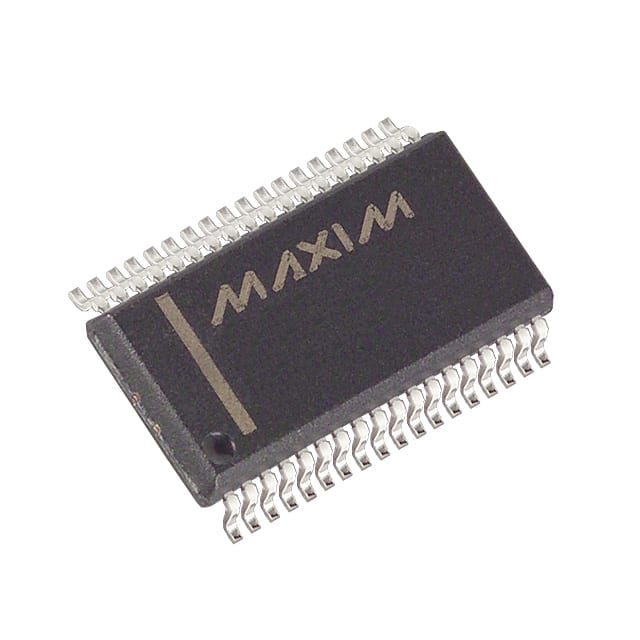

MAX125CEAX+TD
IC DAS 14BIT 250K 36SSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX125CEAX-TD is a 14-bit Data Acquisition System (DAS) operating at a 250kSPS sampling rate. This component features an 8-channel input multiplexer, allowing for efficient data acquisition from multiple sources. The parallel data interface facilitates high-speed data transfer. Designed for surface mount applications, it is supplied in a 36-SSOP package and is delivered on tape and reel. The device operates from a 5V supply, with support for dual analog and digital supplies (±5V). Its operating temperature range is -40°C to 85°C, making it suitable for demanding environments. This DAS is commonly utilized in industrial automation, medical instrumentation, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-BSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | Data Acquisition System (DAS) |
| Data Interface | Parallel |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V, ±5V |
| Sampling Rate (Per Second) | 250k |
| Resolution (Bits) | 14 b |
| Voltage Supply Source | Analog and Digital, Dual ± |
| Supplier Device Package | 36-SSOP |
| Number of Channels | 8 |
