MAX11301GTL+
IC ADC/DAC 12BIT 400K 40TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX11301GTL- is a 12-bit, 400kSPS Analog-to-Digital Converter (ADC) and Digital-to-Analog Converter (DAC) from the PIXI™ series. This versatile device features 20 configurable channels, capable of operating as either an ADC or DAC, with a high-speed I2C interface for efficient data transfer. The MAX11301GTL- supports a wide supply voltage range of 1.62V to 5.5V for analog and digital power. Its 40-TQFN (6x6) exposed pad package is designed for surface mounting and operates reliably within a temperature range of -40°C to 105°C. This component is well-suited for applications in industrial automation, test and measurement, and consumer electronics requiring precise signal conversion and configurable I/O.
Additional Information
Series: PIXI™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | ADC, DAC |
| Data Interface | I2C |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 1.62V ~ 5.5V, 5V |
| Sampling Rate (Per Second) | 400K |
| Resolution (Bits) | 12 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 40-TQFN (6x6) |
| Number of Channels | 20 |
Request a Quote
Clients Also Buy
MAX11311GTJ+
IC ADC 12BIT 400K 32TQFN

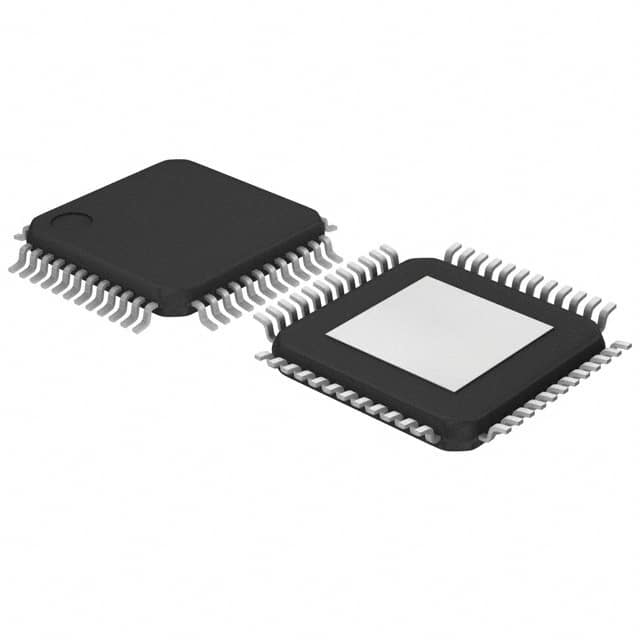

MAX11301GCM+
IC ADC/DAC 12BIT 400K 48TQFP

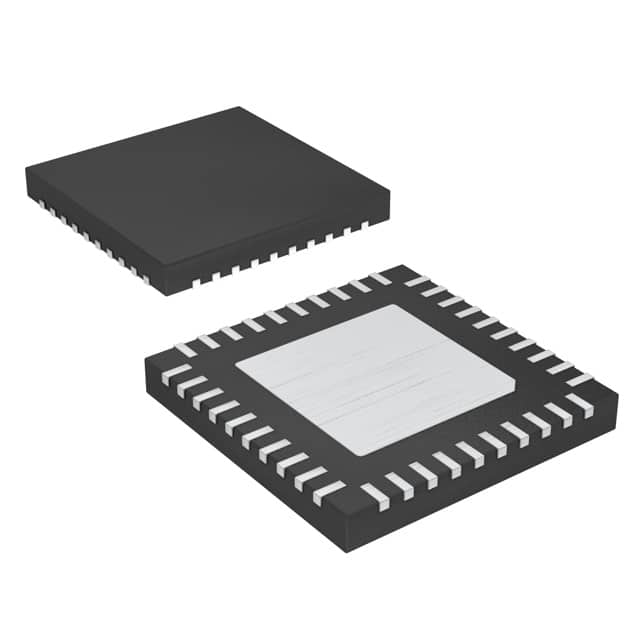

MAX11300GTL+
