MAX1046BETX+T
IC ADC/DAC 10BIT 225K 36TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More

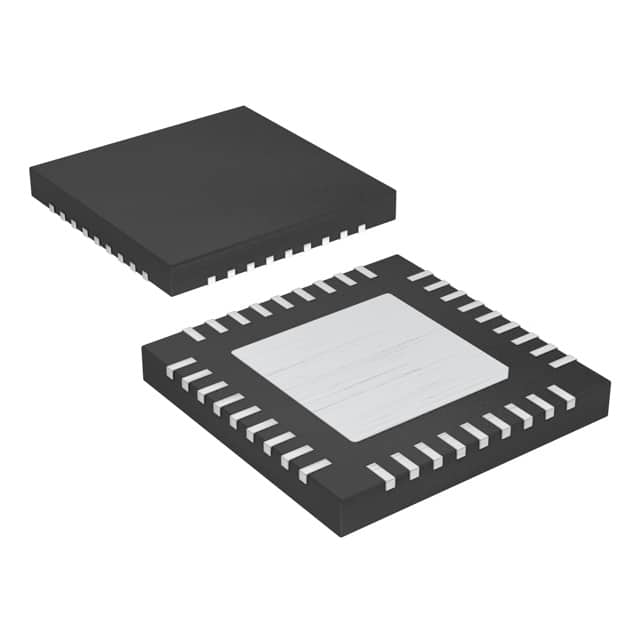

Analog Devices Inc./Maxim Integrated MAX1046BETX-T is a 10-bit Analog-to-Digital Converter (ADC) and Digital-to-Analog Converter (DAC) with a 225kSPS sampling rate. This device features four channels and utilizes a serial data interface for communication. It is housed in a compact 36-TQFN (6x6mm) package with an exposed pad, designed for surface mount applications. Operating within a voltage supply range of 4.75V to 5.25V, it accommodates both analog and digital supply sources. The MAX1046BETX-T is suitable for applications requiring precise signal conversion, including industrial automation, medical instrumentation, and consumer electronics. Its operating temperature range is -40°C to 85°C, and it is supplied on tape and reel for high-volume manufacturing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | ADC, DAC |
| Data Interface | Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Sampling Rate (Per Second) | 225k |
| Resolution (Bits) | 10 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 36-TQFN (6x6) |
| Number of Channels | 4 |
