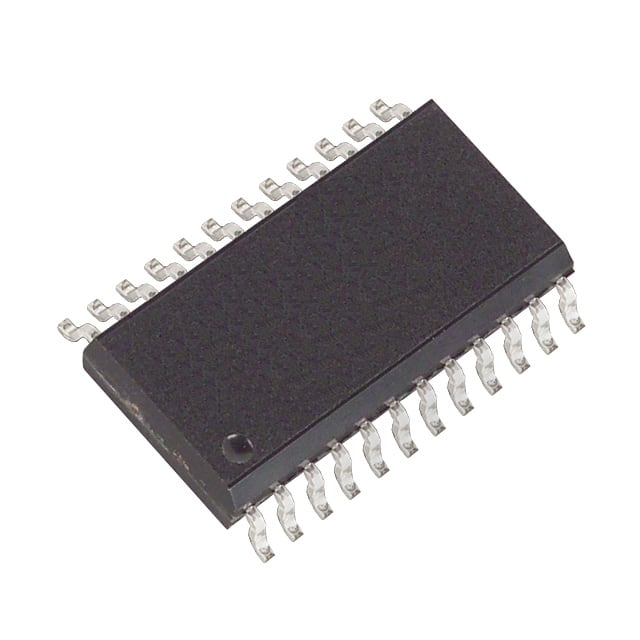

MAX267BEWG+
IC FILTER BANDPASS PROG 24-SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Active
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX267BEWG- is a 2nd order, tunable band-pass filter IC. This device is designed for applications requiring precise frequency selection and signal conditioning. Featuring two independent filters, it offers a center frequency of 57kHz, making it suitable for audio processing, telecommunications, and instrumentation. The MAX267BEWG- operates from a wide supply voltage range of 4.74V to 12.6V or ±2.37V to ±6.3V. Housed in a 24-SOIC package with surface mount capability, it provides robust integration into compact designs. This component is commonly utilized in industrial automation, medical devices, and consumer electronics where accurate filtering is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Filter Type | Band Pass |
| Mounting Type | Surface Mount |
| Voltage - Supply | 4.74V ~ 12.6V, ±2.37V ~ 6.3V |
| Number of Filters | 2 |
| Filter Order | 2nd |
| Frequency - Cutoff or Center | 57kHz |
| Supplier Device Package | 24-SOIC |
