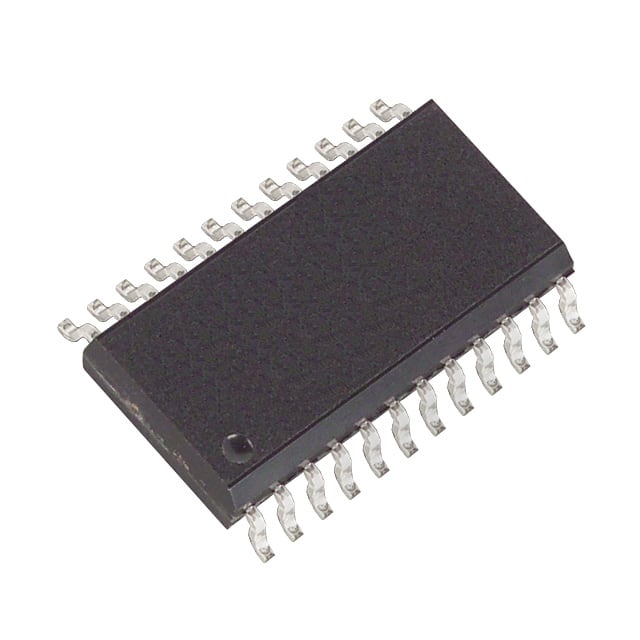

MAX267ACWG+
IC FILTER BANDPASS PROG 24-SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Active
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX267ACWG- is a 2nd-order, 57kHz programmable bandpass filter IC. This device features two independent, low-power, switched-capacitor filters, each with adjustable Q factor and center frequency. Designed for surface-mount applications, it is supplied in a 24-SOIC package. The MAX267ACWG- operates across a wide supply voltage range, from 4.74V to 12.6V single supply or ±2.37V to ±6.3V dual supply. Its versatile filtering capabilities make it suitable for applications in telecommunications, instrumentation, and audio processing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Filter Type | Band Pass |
| Mounting Type | Surface Mount |
| Voltage - Supply | 4.74V ~ 12.6V, ±2.37V ~ 6.3V |
| Number of Filters | 2 |
| Filter Order | 2nd |
| Frequency - Cutoff or Center | 57kHz |
| Supplier Device Package | 24-SOIC |
