MAX262AEWG
IC FILTER 140KHZ SWITCH 24SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Active
Quality Control: Learn More

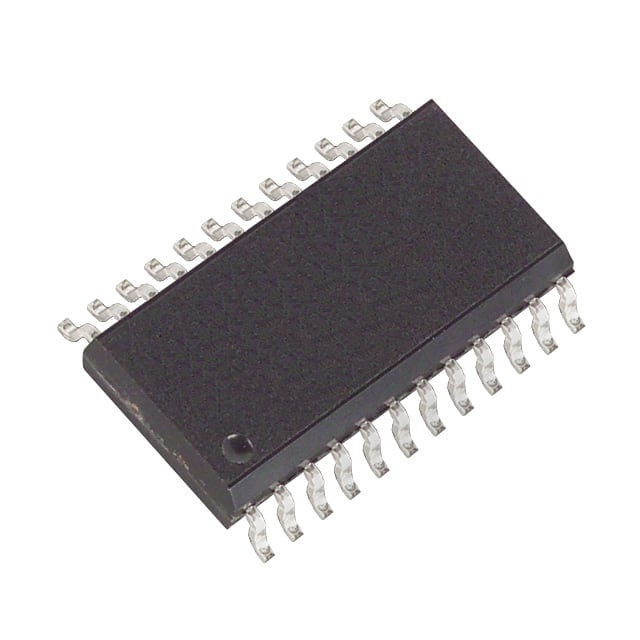

Analog Devices Inc./Maxim Integrated's MAX262AEWG is a universal switched capacitor filter IC. This 2nd-order filter features a 140kHz cutoff frequency and is housed in a 24-SOIC (0.295", 7.50mm width) surface mount package. Designed for ±5V supplies, the MAX262AEWG contains two independent 2nd-order filter sections, offering flexibility for various signal processing applications. This component finds utility in telecommunications, audio processing, and medical instrumentation. The device is supplied in a tube.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Filter Type | Universal Switched Capacitor |
| Mounting Type | Surface Mount |
| Voltage - Supply | ±5V |
| Number of Filters | 2 |
| Filter Order | 2nd |
| Frequency - Cutoff or Center | 140kHz |
| Supplier Device Package | 24-SOIC |
