SFH 9540
SENSOR OPT SLOT PHOTOTRANS 4SMDManufacturer: ams-OSRAM USA INC.
Categories: Transistor Output
Quality Control: Learn More

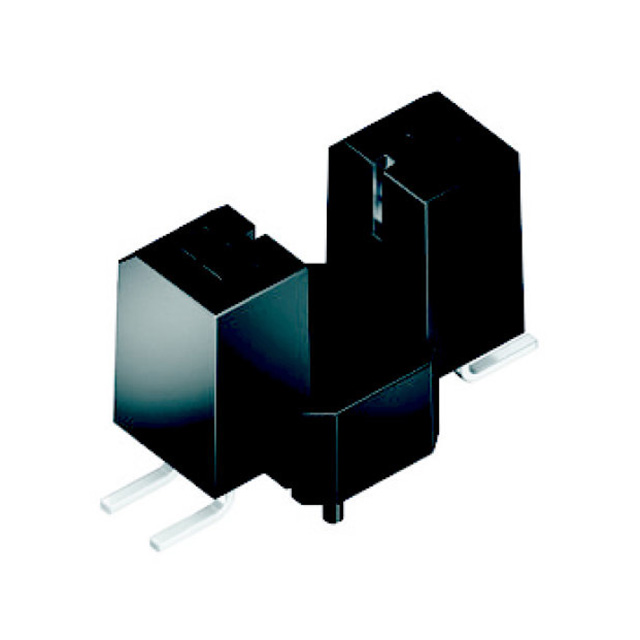

ams-OSRAM USA INC. SFH-9540 is a through-beam optical sensor featuring a phototransistor output. This 4-SMD module offers a sensing distance of 0.197 inches (5mm) and a response time of 13µs. It is designed for surface mounting and operates within an ambient temperature range of -40°C to 85°C. The component supports a maximum collector current (Ic) of 50 mA and a maximum DC forward current (If) of 60 mA, with a collector-emitter breakdown voltage of 70 V. This sensor is commonly utilized in industrial automation, automotive systems, and consumer electronics for presence detection and object sensing applications. The SFH-9540 is supplied in Bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD Module |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | 13µs |
| Current - Collector (Ic) (Max) | 50 mA |
| Voltage - Collector Emitter Breakdown (Max) | 70 V |
| Current - DC Forward (If) (Max) | 60 mA |
