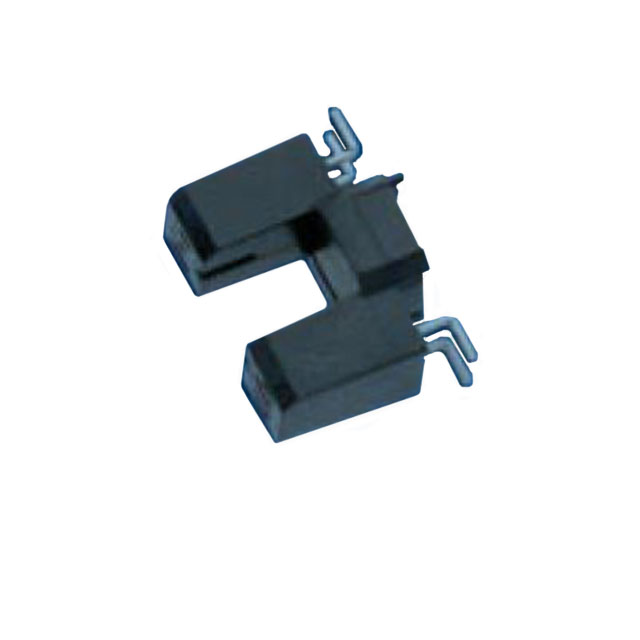

SFH 9500
SENSOR OPT SLOT PHOTOTRANS MODULManufacturer: ams-OSRAM USA INC.
Categories: Transistor Output
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-9500 is a through-beam optical sensor featuring a phototransistor output. This module, with a slotted housing, offers a sensing distance of 0.205" (5.2mm). Key electrical specifications include a maximum collector current (Ic) of 50 mA and a maximum DC forward current (If) of 60 mA. The collector-emitter breakdown voltage (Vce) is rated at 30 V. This component has a response time of 13µs and 17µs. It is designed for surface mounting and operates within an ambient temperature range of -40°C to 85°C. The SFH-9500 is commonly utilized in industrial automation, motion detection, and object sensing applications. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Slotted |
| Sensing Distance | 0.205"" (5.2mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | 13µs, 17µs |
| Current - Collector (Ic) (Max) | 50 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 60 mA |
