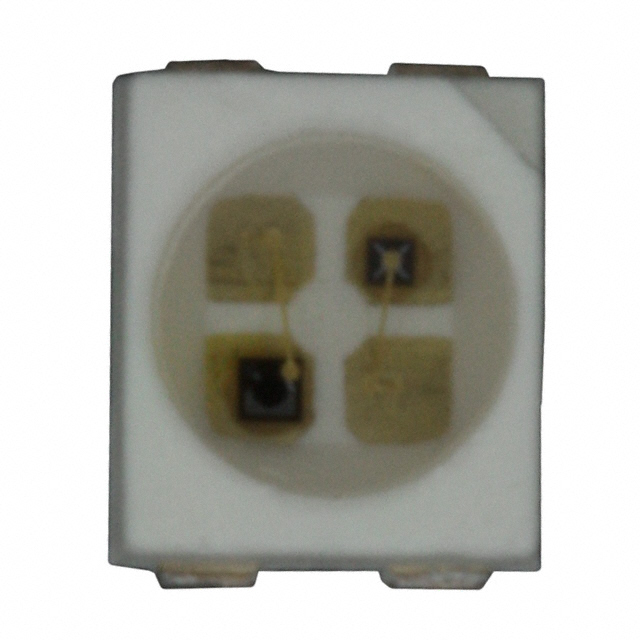

SFH 7221-Z
SENSOR PHOTO 860NM TOP VIEW PLCCManufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-7221-Z is an 860nm phototransistor designed for surface mount applications. This component features a top-view orientation and is housed in a 4-PLCC package, supplied on tape and reel. It offers a maximum collector current (Ic) of 15 mA and a dark current (Id) of 200 nA, with a collector-emitter breakdown voltage of 35 V. The SFH-7221-Z has a maximum power dissipation of 150 mW and a viewing angle of 120°. This device is suitable for applications in industrial automation and consumer electronics where precise optical sensing is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Wavelength | 860nm |
| Mounting Type | Surface Mount |
| Orientation | Top View |
| Operating Temperature | - |
| Viewing Angle | 120° |
| Current - Dark (Id) (Max) | 200 nA |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 150 mW |
