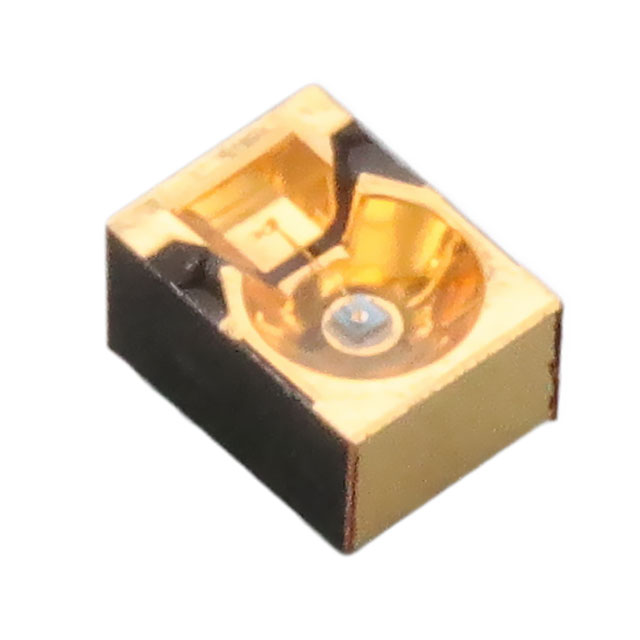

SFH 3600-Z
SENSOR PHOTO 990NM TOP VIEW 2SMDManufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More
ams-OSRAM USA INC. SFH-3600-Z is a top-view phototransistor designed for surface mount applications. This 2-SMD component operates with a peak sensitivity at 990nm, making it suitable for various optical sensing applications. It features a maximum collector current (Ic) of 15 mA and a dark current (Id) of 50 nA, with a collector-emitter breakdown voltage of 35 V. The device is rated for a maximum power dissipation of 130 mW and operates across a temperature range of -40°C to 100°C. Its 40° viewing angle ensures directional light detection. Packaged in Tape & Reel (TR), the SFH-3600-Z is commonly utilized in industrial automation, consumer electronics, and automotive systems where precise light detection is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD |
| Wavelength | 990nm |
| Mounting Type | Surface Mount |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C |
| Viewing Angle | 40° |
| Current - Dark (Id) (Max) | 50 nA |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 130 mW |
