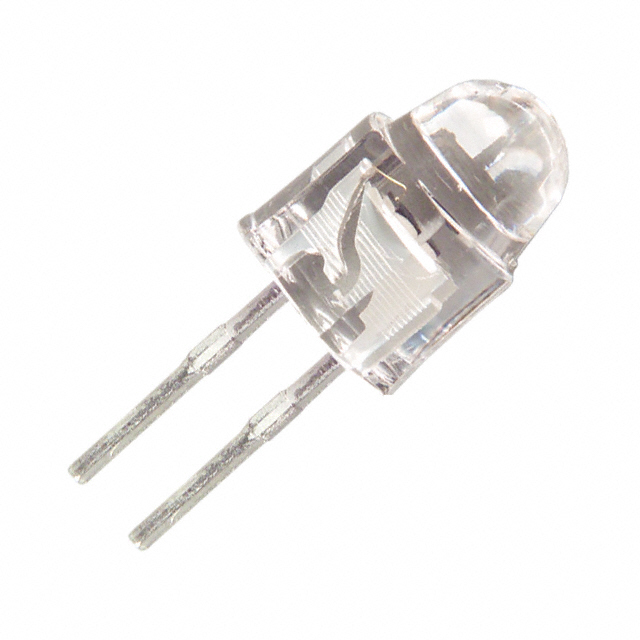

SFH 3505
SENSOR PHOTO 830NM SIDE VIEW RADManufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More
ams-OSRAM USA INC. SFH-3505 is an infrared phototransistor designed for side-view detection at 830nm. This component features a collector current of up to 50 mA and a low dark current of 200 nA maximum. The SFH-3505 is packaged in a radial configuration suitable for surface mounting, delivered on tape and reel. It operates within a temperature range of -40°C to 85°C, with a maximum power dissipation of 150 mW and a collector-emitter breakdown voltage of 35 V. The viewing angle is rated at 26°. This phototransistor is commonly utilized in industrial automation, medical equipment, and optical sensing applications where reliable infrared detection is critical.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial |
| Wavelength | 830nm |
| Mounting Type | Surface Mount |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 85°C |
| Viewing Angle | 26° |
| Current - Dark (Id) (Max) | 200 nA |
| Current - Collector (Ic) (Max) | 50 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 150 mW |
