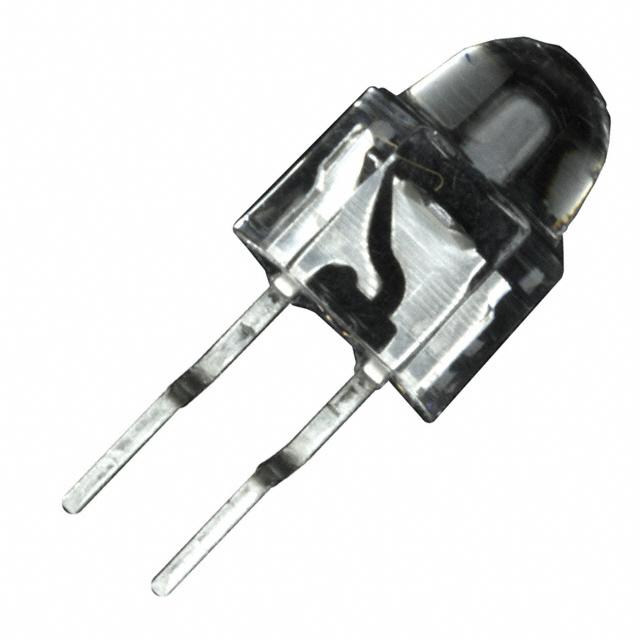

SFH 3500-Z
PHOTOTRANSISTOR NPN SMD RADIALManufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More
ams-OSRAM USA INC. SFH-3500-Z is a radial-packaged NPN phototransistor designed for side-view optical sensing applications. This component features a 26° viewing angle and operates at an 830nm wavelength. Key electrical parameters include a maximum collector current (Ic) of 50 mA, a maximum collector-emitter breakdown voltage (Vceo) of 35 V, and a maximum power dissipation of 150 mW. The dark current (Id) is specified at a maximum of 200 nA. The SFH-3500-Z is supplied in Tape & Reel (TR) packaging for automated surface mount assembly. This phototransistor is utilized in various industrial automation, sensor, and control systems where precise optical detection is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial |
| Wavelength | 830nm |
| Mounting Type | Surface Mount |
| Orientation | Side View |
| Viewing Angle | 26° |
| Current - Dark (Id) (Max) | 200 nA |
| Current - Collector (Ic) (Max) | 50 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 150 mW |
