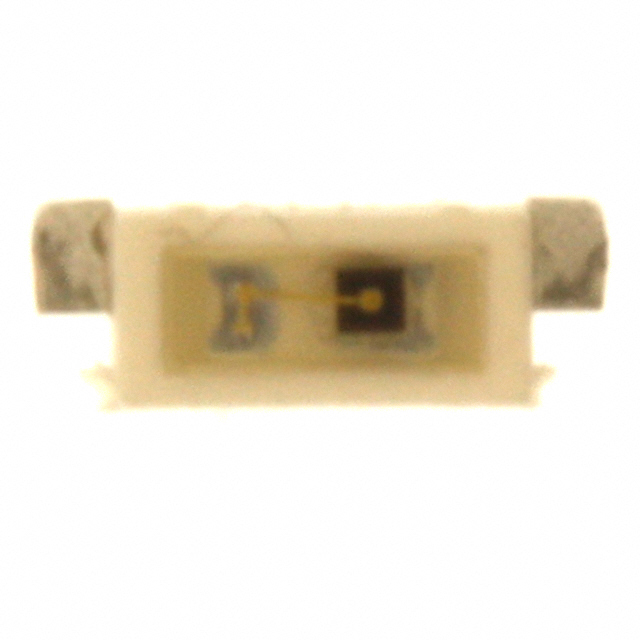

SFH 3204-Z
SENSOR PHOTO 920NM SIDE VIEW SMDManufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-3204-Z is a side-view phototransistor designed for optical sensing applications. This component features a peak sensitivity at 920nm, making it suitable for infrared detection. It is housed in a 2-SMD, Flat Leads package, facilitating surface mounting. The SFH-3204-Z offers a maximum collector current (Ic) of 15 mA and a low dark current (Id) of 50 nA. With a collector-emitter breakdown voltage of 15 V and an operating temperature range of -40°C to 100°C, this device is engineered for reliability. Its broad 120° viewing angle enhances its utility in various industrial automation, consumer electronics, and medical device applications. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Leads |
| Wavelength | 920nm |
| Mounting Type | Surface Mount |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 100°C |
| Viewing Angle | 120° |
| Current - Dark (Id) (Max) | 50 nA |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
