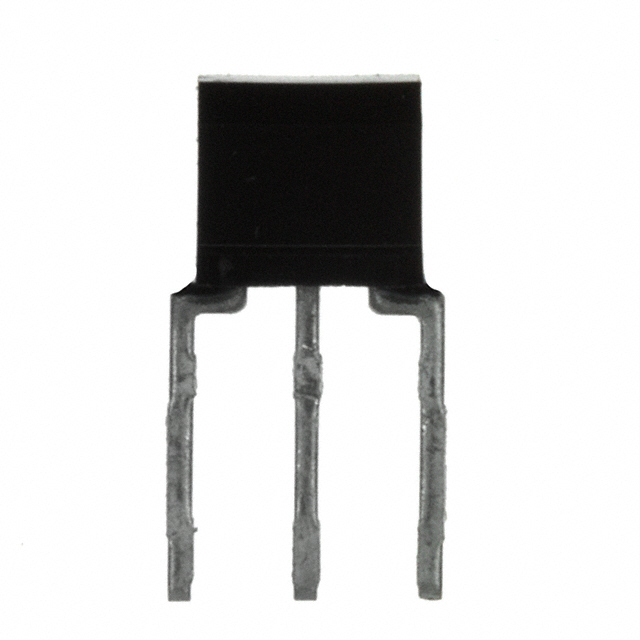

SFH 3163 F
SENSOR PHOTO 920NM SIDE VIEW RADManufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-3163-F is a side-view phototransistor optimized for 920nm wavelength detection. This radial-mount component offers a collector-emitter breakdown voltage of 30V and a maximum collector current of 10mA. With a dark current rating of 100nA and a power dissipation of 100mW, it is designed for reliable operation across an extended temperature range of -40°C to 85°C. The SFH-3163-F features a wide viewing angle of 150°, making it suitable for various optical sensing applications. It is supplied in bulk packaging. This phototransistor finds utility in industrial automation, medical equipment, and consumer electronics where precise light detection is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 920nm |
| Mounting Type | Through Hole |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 85°C |
| Viewing Angle | 150° |
| Current - Dark (Id) (Max) | 100 nA |
| Current - Collector (Ic) (Max) | 10 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 100 mW |
