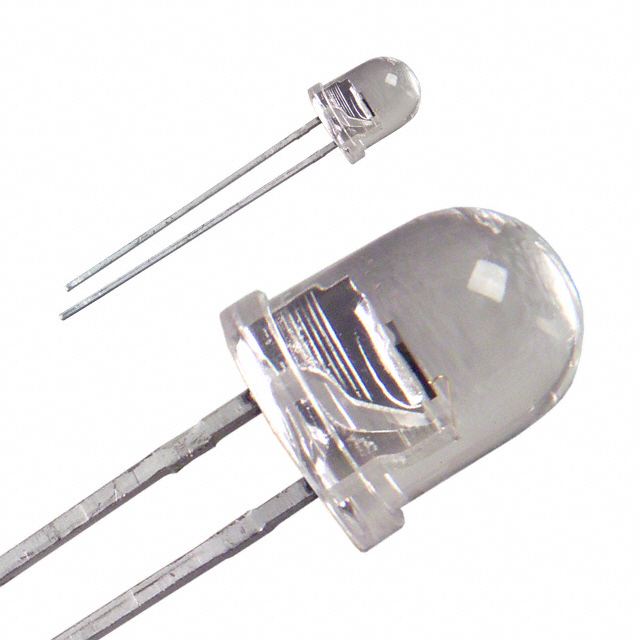

SFH 314
SENSOR PHOTO 850NM TOP VIEW RADManufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More
ams-OSRAM USA INC. SFH-314 is a top-view, radial phototransistor designed for applications requiring detection of infrared light at 850nm. This component features a maximum collector current (Ic) of 50 mA and a low dark current (Id) of 200 nA. With a collector-emitter breakdown voltage of 70 V and a maximum power dissipation of 200 mW, the SFH-314 is suitable for demanding environments. Its through-hole mounting and 80° viewing angle facilitate integration into various circuit designs. Operating across a temperature range of -40°C to 100°C, this device finds application in industrial automation, medical sensing, and security systems. The SFH-314 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 850nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C |
| Viewing Angle | 80° |
| Current - Dark (Id) (Max) | 200 nA |
| Current - Collector (Ic) (Max) | 50 mA |
| Voltage - Collector Emitter Breakdown (Max) | 70 V |
| Power - Max | 200 mW |
