SFH 3100 F
SENSOR PHOTO 920NM SIDE VIEW RADManufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More

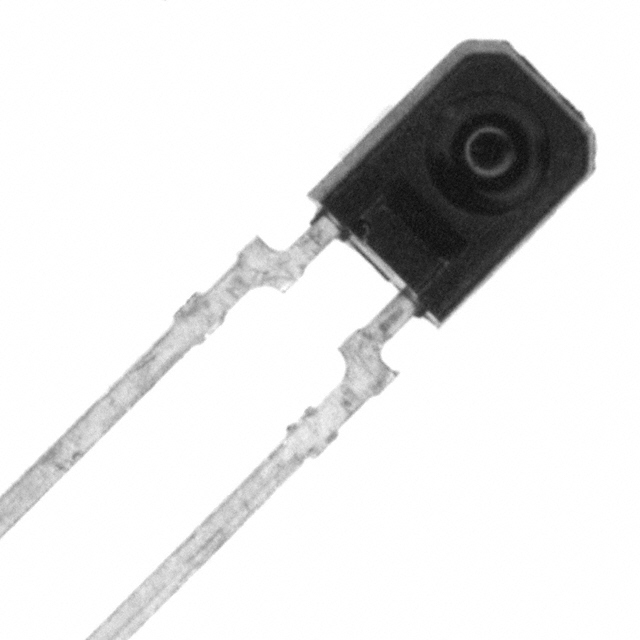

The ams-OSRAM USA INC. SFH-3100-F is a side-view phototransistor designed for operation at a peak wavelength of 920nm. This radial-packaged component offers a collector current (Ic) of up to 50 mA and a breakdown voltage (Vceo) of 35V. With a low dark current (Id) of 50 nA and a maximum power dissipation of 150 mW, it is suitable for applications requiring precise light detection. The component features a viewing angle of 28° and is available in bulk packaging. Operating within a temperature range of -40°C to 85°C, the SFH-3100-F is utilized in automotive, industrial, and consumer electronics sectors requiring optical sensing capabilities.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 920nm |
| Mounting Type | Through Hole |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 85°C |
| Viewing Angle | 28° |
| Current - Dark (Id) (Max) | 50 nA |
| Current - Collector (Ic) (Max) | 50 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 150 mW |
