SFH 310 FA-2/3
SENSOR PHOTO 880NM TOP VIEW RADManufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More

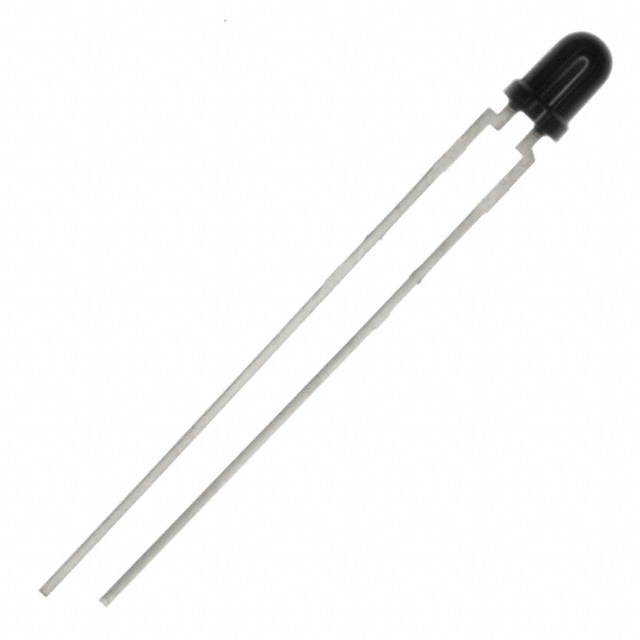

The ams-OSRAM USA INC. SFH-310-FA-2-3 is a phototransistor designed for infrared detection at 880nm. This top-view radial component features a maximum collector current (Ic) of 50 mA and a low dark current (Id) of 50 nA. With a collector-emitter breakdown voltage of 70 V and a maximum power dissipation of 165 mW, it is suitable for demanding applications. The SFH-310-FA-2-3 is mounted via through-hole technology and operates within a temperature range of -40°C to 100°C. Its viewing angle is 50°. This phototransistor is commonly utilized in industrial automation, automotive systems, and medical devices. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C |
| Viewing Angle | 50° |
| Current - Dark (Id) (Max) | 50 nA |
| Current - Collector (Ic) (Max) | 50 mA |
| Voltage - Collector Emitter Breakdown (Max) | 70 V |
| Power - Max | 165 mW |
Request a Quote
Clients Also Buy
SFH 325G-4-Z
PHOTO SENSOR SIDE VIEW 2PLCC
SFH 3605-2/3-Z
SENSOR PHOTO 990NM SIDE VIEW SMD

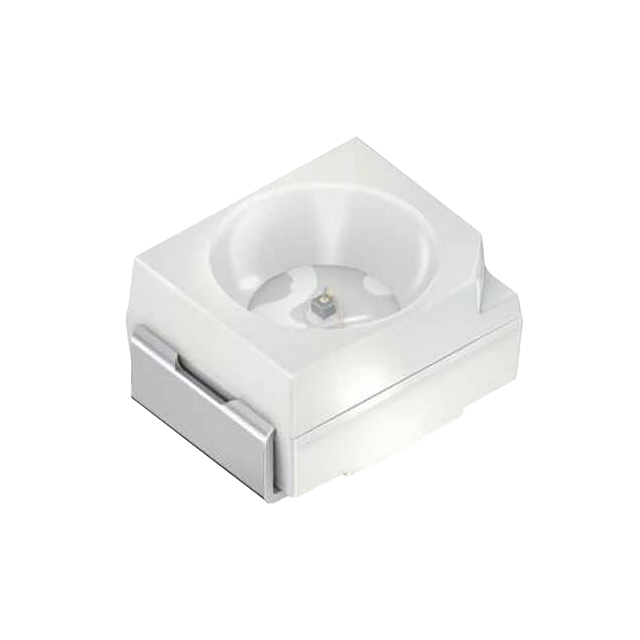

SFH 320-Z
