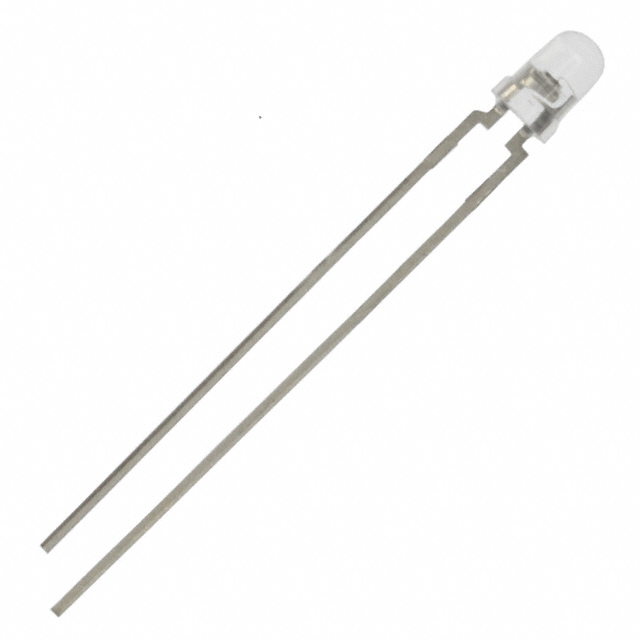

SFH 310-2/3
SENSOR PHOTO 880NM TOP VIEW RADManufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-310-2-3 is a top-view phototransistor designed for applications requiring sensitivity at 880nm. This radial leaded component features a maximum collector current (Ic) of 50 mA and a low dark current (Id) of 50 nA. With a collector-emitter breakdown voltage of 70 V and a maximum power dissipation of 165 mW, it is suitable for operation within a temperature range of -40°C to 100°C. The SFH-310-2-3 offers a viewing angle of 50° and is supplied in bulk packaging for efficient integration into through-hole mounting designs. This component is commonly utilized in industrial automation, automotive sensing, and optical sensing systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C |
| Viewing Angle | 50° |
| Current - Dark (Id) (Max) | 50 nA |
| Current - Collector (Ic) (Max) | 50 mA |
| Voltage - Collector Emitter Breakdown (Max) | 70 V |
| Power - Max | 165 mW |
