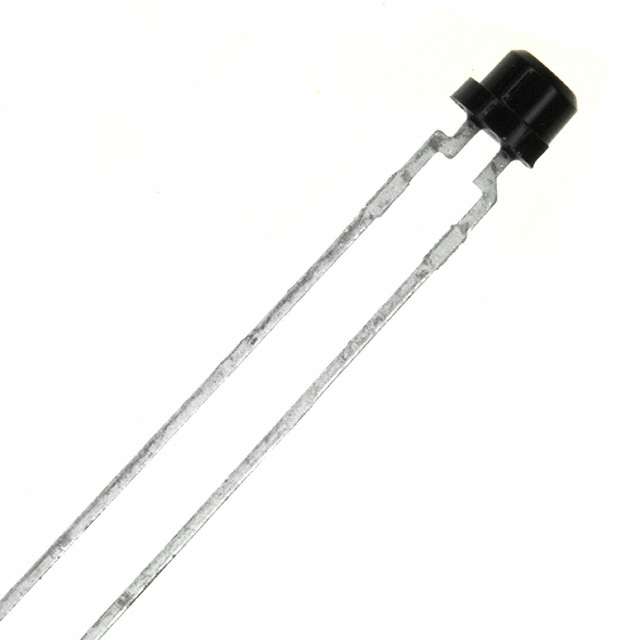

SFH 309 PFA
PHOTOTRANSISTOR NPN 900NM 3MMManufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More
ams-OSRAM USA INC. SFH-309-PFA is an NPN phototransistor designed for applications requiring detection of infrared light with a peak sensitivity at 900nm. This through-hole component features a T-1 radial lens package for top-view optical sensing. With a maximum collector current of 15 mA and a collector-emitter breakdown voltage of 35V, it offers robust performance. The device exhibits a low dark current of 200 nA (max) and a maximum power dissipation of 165 mW. Its wide 150° viewing angle makes it suitable for proximity sensing, object detection, and general light sensing in industrial automation, medical devices, and consumer electronics. The SFH-309-PFA is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, T-1 Lens |
| Wavelength | 900nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Viewing Angle | 150° |
| Current - Dark (Id) (Max) | 200 nA |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 165 mW |
