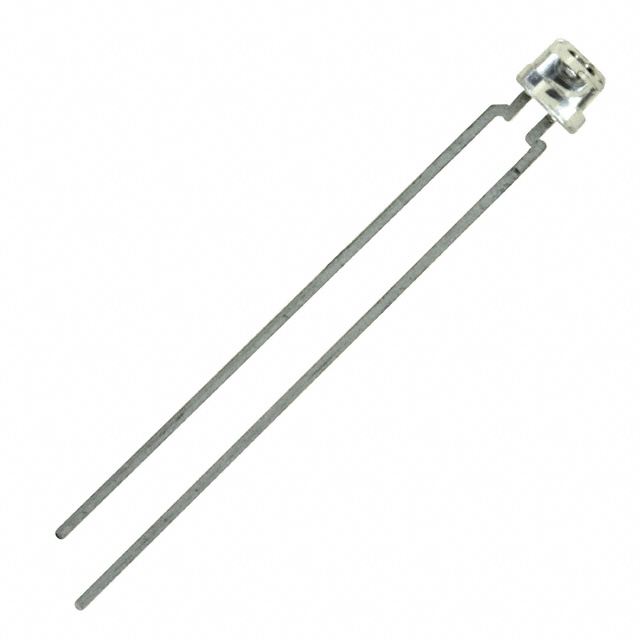

SFH 309 P
PHOTOTRANSISTOR NPN 860NM 3MMManufacturer: ams-OSRAM USA INC.
Categories: Phototransistors
Quality Control: Learn More
ams-OSRAM USA INC. SFH-309-P is a top-view, NPN phototransistor featuring an 860nm peak sensitivity and a T-1 radial lens package. This component is designed for through-hole mounting and offers a maximum collector current (Ic) of 15 mA with a collector-emitter breakdown voltage (Vceo) of 35 V. The SFH-309-P exhibits a low dark current (Id) of 200 nA (max) and a maximum power dissipation of 165 mW. Its wide 150° viewing angle makes it suitable for a variety of sensing applications. Industries benefiting from this device include industrial automation, medical equipment, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, T-1 Lens |
| Wavelength | 860nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Viewing Angle | 150° |
| Current - Dark (Id) (Max) | 200 nA |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 165 mW |
